Description

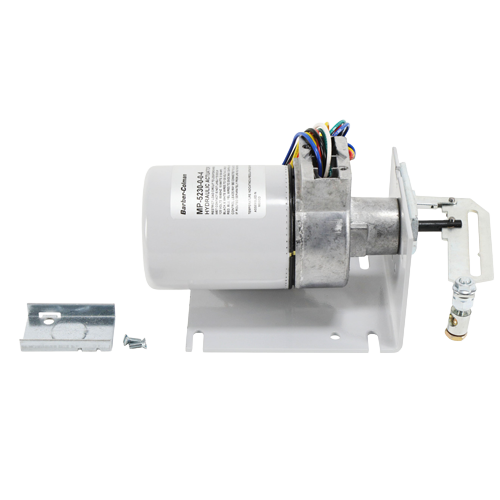

The Schneider Electric (Barber Colman) MP-5230 is a precision-engineered electronic hydraulic damper actuator designed for reliable damper positioning in commercial HVAC and building automation systems. Combining a spring-return safety mechanism with a proportional electronic control input, this actuator delivers accurate, repeatable performance in air handling, economizer, and VAV applications.
Key Features
- Electronic hydraulic actuator design for smooth, precise damper control
- 120 V power supply for compatibility with standard commercial HVAC control circuits
- Spring return operation ensures fail-safe damper positioning on power loss
- 2 to 15 Vdc input signal range for broad compatibility with building automation controllers
- Nominal 3 Vdc operating span for fine-resolution proportional control
- Barber Colman heritage — trusted in commercial and industrial HVAC applications
Application
The MP-5230 is well suited for use in commercial air handling units, economizer systems, VAV boxes, and other HVAC applications where proportional damper control and fail-safe spring return are required. Its electronic hydraulic mechanism provides consistent torque output and smooth modulation, making it an ideal choice for building automation system (BAS) integration.
Specifications
- SKU: MP-5230
- Brand: Schneider Electric (Barber Colman)
- Actuator Type: Electronic Hydraulic Damper Actuator
- Supply Voltage: 120 V
- Return Type: Spring Return (Fail-Safe)
- Input Signal: 2 to 15 Vdc
- Nominal Operating Span: 3 Vdc
