Description

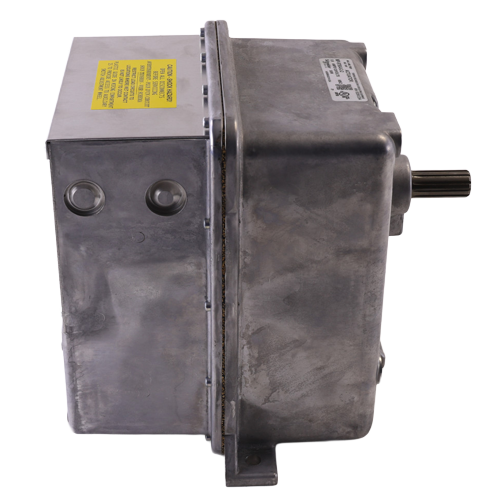

The Schneider Electric (Barber Colman) MP-9750 is a heavy-duty, high-torque oil submerged actuator engineered for demanding commercial and industrial HVAC valve and damper control applications. Designed to deliver reliable proportional or floating control, this actuator is built to perform in environments where consistent, precise positioning is critical.
Key Features
- High-torque oil submerged design for smooth, long-lasting operation
- 800 lb-in output torque for driving large valves and dampers
- 120V input voltage for easy integration into standard commercial HVAC systems
- Supports both proportional and floating control modes for application flexibility
- 135-second timing cycle (no load) for controlled, stable actuation speed
- 180-degree reversible limit switch for precise end-of-travel positioning
- SPDT auxiliary switch for status feedback and interlock wiring
- Built-in transformer simplifies wiring and reduces external component requirements
Specifications
- SKU: MP-9750
- Brand: Schneider Electric (Barber Colman)
- Voltage: 120V
- Output Torque: 800 Lb-In
- Timing (No Load): 135 Seconds
- Control Type: Proportional or Floating
- Limit Switch: 180° Reversible
- Auxiliary Switch: SPDT
- Transformer: Built-In
- Actuator Type: Oil Submerged, Hi Torque
Applications
- Commercial HVAC valve actuation
- Damper positioning in air handling systems
- Building automation and control systems
- Industrial process control requiring high-torque electric actuation
The MP-9750’s oil submerged construction ensures quiet, friction-reduced operation while protecting internal components from wear, making it an ideal choice for installations where longevity and dependability are paramount. The integrated transformer and SPDT auxiliary switch streamline installation and system integration, saving time and reducing overall installed cost.
