Description

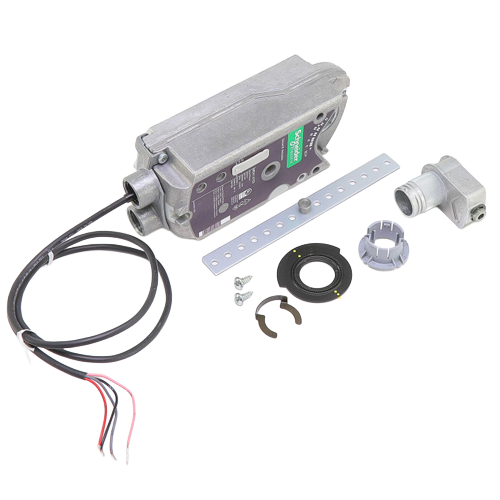

The Schneider Electric (Barber Colman) MS41-6153 is a heavy-duty, non-spring return (NSR) direct-coupled damper actuator engineered for precise modulating control in commercial HVAC and building automation applications. Accepting a 0–10 VDC control signal, this actuator integrates seamlessly with DDC systems and building automation controllers to deliver accurate, repeatable damper positioning across a wide range of air-handling and ventilation systems.
Key Features
- 24V AC/DC power supply for broad compatibility with commercial control systems
- Non-spring return (NSR) operation — damper holds last position on power loss
- 0–10 VDC modulating control signal for precise proportional positioning
- 133 lb-in (15 Nm) torque output handles large or high-resistance dampers
- Direct-couple mounting eliminates the need for crank arms or linkages
- Compact, low-profile housing for easy installation in tight mechanical spaces
- Manual override function for commissioning and maintenance convenience
Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: MS41-6153
- Supply Voltage: 24V AC/DC
- Control Signal: 0–10 VDC (modulating)
- Actuator Type: Non-Spring Return (NSR)
- Torque Output: 133 lb-in
Applications
- VAV and constant-volume air handling units
- Outdoor air, return air, and exhaust damper control
- Building automation and DDC control systems
- Commercial HVAC zoning and ventilation control
The MS41-6153 is backed by Schneider Electric’s legacy of quality in building controls — formerly marketed under the Barber Colman brand — making it a trusted choice for mechanical contractors, controls technicians, and building automation professionals.
