Description

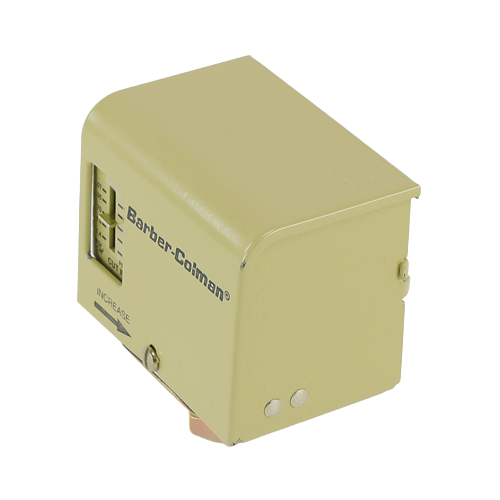

The Schneider Electric (Barber Colman) PC-110 is a reliable pneumatic-to-electric (P/E) pressure switch engineered for commercial HVAC building automation and pneumatic control systems. It converts a pneumatic signal into an electrical switching action, bridging pneumatic control circuits with electric loads in two-position control applications.
Switch Operation
The PC-110 features an SPDT (Single-Pole, Double-Throw) switching configuration. On a pressure increase, the switch makes the Normally Open (NO) contact to Common, providing dependable two-position control logic for fans, dampers, valves, and other HVAC equipment.
Key Specifications
- Switch Type: Pneumatic to Electric (P/E), Two-Position
- Switch Action: SPDT — makes Normally Open contact to Common on pressure increase
- Scale Range: 1 to 20 PSI
- Differential: 1 to 5 PSI
- Mounting: Surface or track mount
Features & Benefits
- Converts pneumatic control signals to electric switching actions for seamless system integration
- Two-position SPDT output for straightforward on/off control of electric loads
- Adjustable 1–20 PSI scale range accommodates a wide variety of pneumatic system pressures
- 1–5 PSI adjustable differential helps prevent short-cycling and ensures stable operation
- Flexible surface or track mounting options simplify installation in panels and enclosures
- Barber Colman heritage backed by Schneider Electric quality and reliability
Typical Applications
- Commercial building pneumatic HVAC control systems
- Fan and damper status monitoring
- Pneumatic-to-electric signal conversion in AHUs and VAV systems
- Two-position valve and actuator control
