Description

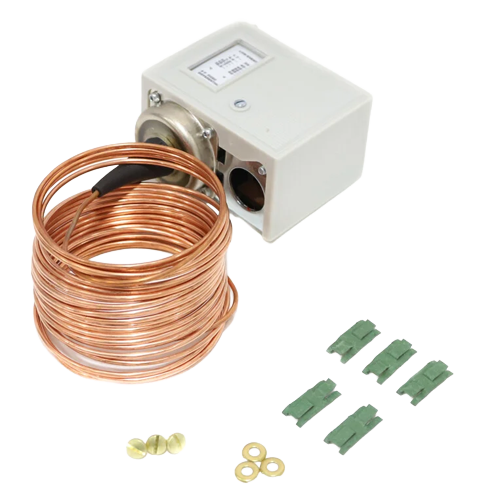

The Schneider Electric (Barber Colman) TC-5241 is a heavy-duty low temperature thermostat engineered to detect and respond to freezing conditions in HVAC air handling and mechanical systems. With a wide voltage range and a proven capillary sensing design, this thermostat delivers reliable freeze protection across a broad range of commercial and industrial applications.
Product Overview
The TC-5241 monitors air temperature across its 20-foot capillary element, triggering a manual reset action when temperatures drop to a dangerous level. Because it requires a manual reset, the unit ensures that a qualified technician investigates and resolves the root cause of a freeze condition before the system is returned to service — a critical safety feature in sensitive HVAC environments.
Key Features
- Low temperature (freeze protection) thermostat for HVAC air handling units and ductwork
- Setpoint range: 35°F to 60°F for precise freeze-protection calibration
- Manual reset operation — requires intentional reset after a trip event for added safety
- SPDT (Single Pole Double Throw) switching for versatile control wiring configurations
- Wide operating voltage: 24V to 277V AC, compatible with most commercial control systems
- 20-foot capillary sensing element for broad area temperature averaging
- Includes capillary mounting clips for secure, professional installation
Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: TC-5241
- Thermostat Type: Low Temperature / Freeze Protection
- Setpoint Range: 35°F – 60°F
- Reset Type: Manual Reset
- Switch Action: SPDT (Single Pole Double Throw)
- Voltage Range: 24V – 277V AC
- Capillary Length: 20 feet
- Includes: Capillary mounting clips
Typical Applications
- Air handling units (AHUs) requiring freeze protection
- Commercial and industrial ductwork temperature monitoring
- Mechanical rooms and equipment with exposure to low ambient temperatures
- Building automation and HVAC control systems requiring SPDT switching
