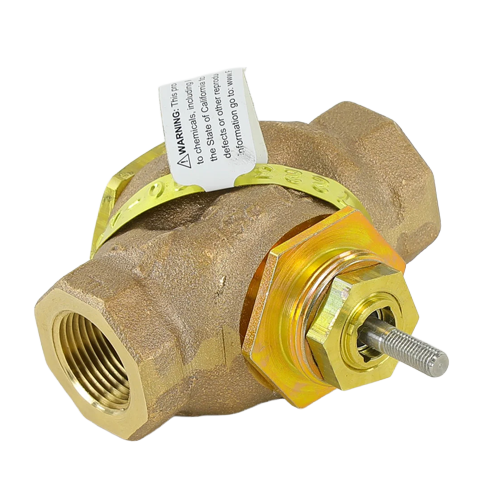

Schneider Electric (Barber Colman) VB-7223-0-4-6 Globe Valve Overview
The Schneider Electric (Barber Colman) VB-7223-0-4-6 is a precision-engineered two-way globe valve designed for reliable flow control in commercial HVAC and hydronic systems. Featuring a durable bronze body with brass trim, this valve delivers consistent equal percentage flow characteristics, making it ideal for heating and cooling coil applications where precise modulation is critical.
Key Features
- Two-way, equal percentage flow characteristic for precise modulation control
- 3/4″ NPT end connections for straightforward installation in standard piping systems
- 7.5 Cv flow coefficient for optimal flow capacity in medium-duty applications
- Bronze body construction for excellent corrosion resistance and long service life
- Brass trim for durability and compatibility with common hydronic system fluids
- Stem-up closed (normally closed) actuator orientation for fail-safe operation
- Compatible with Schneider Electric / Barber Colman actuators for complete valve-actuator assembly
Application
The VB-7223-0-4-6 globe valve is well-suited for use in commercial building automation and HVAC control systems, including heating and cooling coil control, fan coil units, air handling units, and hydronic heating systems. The equal percentage flow characteristic ensures smooth, stable control across the full range of valve travel, minimizing hunting and improving system efficiency.
Product Specifications
- SKU: VB-7223-0-4-6
- Brand: Schneider Electric (Barber Colman)
- Valve Type: Globe, Two-Way
- Flow Characteristic: Equal Percentage
- Connection Size: 3/4″
- Connection Type: NPT (National Pipe Thread)
- Flow Coefficient (Cv): 7.5
- Body Material: Bronze
- Trim Material: Brass
- Actuator Mounting: Stem Up Closed
