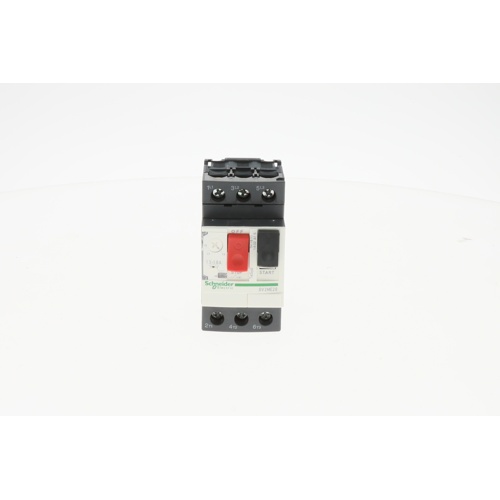

Schneider Electric (Square D) GV2ME20 13-18A Manual Motor Starter

Description

The Schneider Electric (Square D) GV2ME20 is a compact, self-protected manual motor starter engineered to deliver dependable motor protection and control in demanding HVAC and industrial applications. Featuring an adjustable thermal-magnetic trip mechanism, this unit provides both overload and short-circuit protection in a single, space-saving device — eliminating the need for separate fuses or circuit breakers in many installations.

Key Features

• Adjustable current setting range: 13–18 A
• Integrated thermal-magnetic trip for overload and short-circuit protection
• Manual ON/OFF switching with trip-free mechanism for safe operation
• Compact DIN rail or panel-mount design saves panel space
• Clear trip indication for fast fault diagnosis
• Positive lock-out/tag-out capability for maintenance safety
• Suitable for 3-phase motor applications in HVAC, pumps, fans, and compressors

Product Specifications

• Brand: Schneider Electric (Square D)
• Model / SKU: GV2ME20
• Current Setting Range: 13–18 A
• Type: Manual Motor Starter / Self-Protected Combination Motor Controller
• Trip Function: Thermal-magnetic (overload + short-circuit)
• Mounting: DIN rail or panel mount

Application

The GV2ME20 is ideal for protecting and controlling three-phase motors in HVAC systems including air handlers, pumps, condenser fans, and compressor circuits. Its self-protected design simplifies panel wiring and reduces installation time, making it a preferred choice for mechanical contractors and controls technicians alike.
