Description

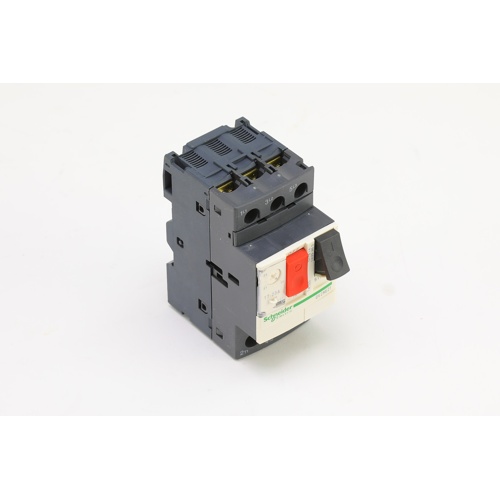

Schneider Electric (Square D) GV2ME21 TeSys Manual Motor Starter
The Schneider Electric (Square D) GV2ME21 is a heavy-duty manual motor starter and protector from the industry-trusted TeSys GV2 series. Engineered for reliable motor protection in commercial and industrial HVAC applications, this IEC-rated device delivers precise thermal-magnetic protection across a 17–23 amp operating range — making it an ideal solution for protecting compressors, pumps, fans, and other motor-driven equipment.
Key Features
- Current adjustment range: 17–23 amps
- Rated operational voltage: up to 690V AC
- Thermal-magnetic trip mechanism for overload and short-circuit protection
- Manual ON/OFF/TRIP operation with padlockable handle
- DIN rail or panel surface mounting compatible
- Compact IEC design for space-efficient installation
- Integrated trip indication for fast fault identification
- Suitable for motors up to approximately 11 kW at 400V
Application
The GV2ME21 is well-suited for HVAC and refrigeration systems where dependable motor protection is critical. Common applications include air handling unit motors, chiller and condenser fan motors, circulating pumps, compressors, and other three-phase motor loads in commercial mechanical rooms and industrial environments.
Product Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: GV2ME21
- Series: TeSys GV2
- Current Range: 17–23 A
- Voltage Rating: Up to 690V AC
- Protection Type: Thermal-Magnetic
- Mounting: DIN Rail / Panel Mount
- Standard: IEC
Order the Schneider Electric GV2ME21 from Jackson Systems for fast shipping and expert support.
