Description

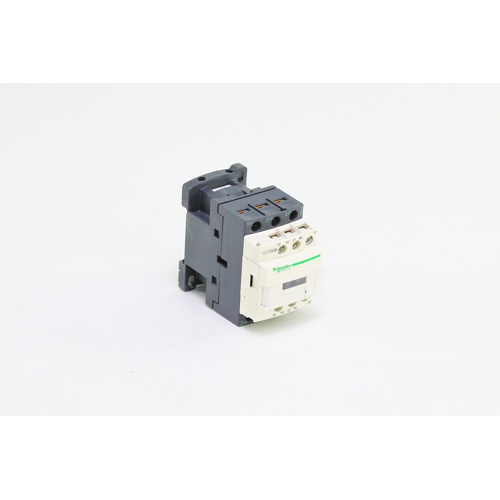

The Schneider Electric (Square D) LC1D09LE7 is a heavy-duty, non-reversing IEC contactor engineered for dependable motor control and switching applications in commercial and industrial HVAC systems. Featuring a 208VAC coil, this contactor delivers consistent, reliable operation across demanding electrical environments.
Key Features
- 208VAC coil voltage for compatibility with standard commercial power systems
- 3-pole configuration for three-phase load switching
- 9-amp continuous current rating
- Non-reversing design for straightforward motor control applications
- Screw terminal connections for secure, vibration-resistant wiring
- One normally closed (NC) auxiliary contact included
- One normally open (NO) auxiliary contact included
Application
The LC1D09LE7 is ideal for controlling motors, compressors, fans, and other inductive loads in HVAC, refrigeration, and light industrial installations. The integrated auxiliary contacts allow for control circuit interlocking, status indication, and safety monitoring without the need for additional add-on blocks.
Product Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: LC1D09LE7
- Coil Voltage: 208VAC
- Number of Poles: 3
- Current Rating: 9 Amps
- Contactor Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
Why Choose Schneider Electric?
Schneider Electric is a globally recognized leader in energy management and automation. Their TeSys LC1D series contactors are built to IEC standards and are trusted by HVAC professionals and electrical contractors worldwide for their durability, ease of installation, and long service life.
