Description

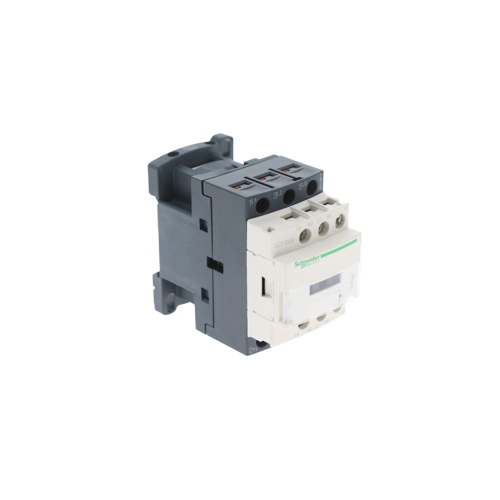

The Schneider Electric (Square D) LC1D09M7 is a heavy-duty, non-reversing IEC contactor engineered for dependable motor control and switching applications in commercial and industrial HVAC systems. Featuring a 220VAC control coil, this 3-pole contactor delivers 9 amps of continuous current capacity, making it well-suited for compressor control, fan motor switching, and other demanding electrical loads.
Built with screw-type terminals for fast, secure field wiring, the LC1D09M7 also includes one normally open (NO) and one normally closed (NC) auxiliary contact, providing built-in signaling and interlocking capability without the need for add-on blocks. The compact IEC form factor integrates easily into existing control panels and motor control centers.
Key Features
- Non-reversing contactor design for straightforward motor control
- 220VAC control coil voltage
- 3-pole main contact configuration
- 9-amp continuous current rating
- Screw terminal connections for reliable, tool-friendly wiring
- One normally open (1NO) auxiliary contact included
- One normally closed (1NC) auxiliary contact included
- IEC-rated design for compact panel integration
- Manufactured by Schneider Electric (Square D) — a globally trusted brand in electrical control
Applications
- HVAC compressor and condenser fan motor switching
- Commercial motor control panels
- Industrial automation and control circuits
- Pump and blower motor control
- Interlocking and signaling circuits using auxiliary contacts
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: LC1D09M7
- Coil Voltage: 220VAC
- Number of Poles: 3
- Current Rating: 9 Amps
- Contactor Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
