Description

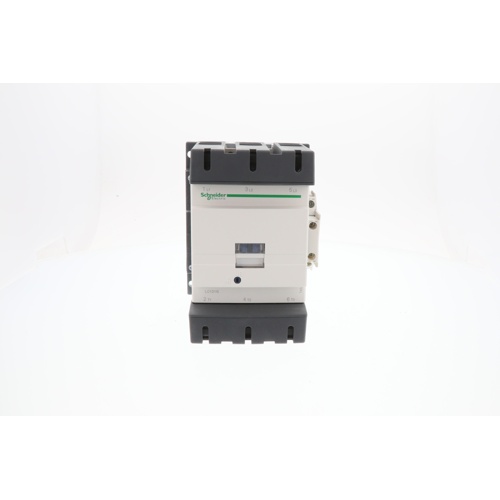

The Schneider Electric (Square D) LC1D115G6 is a heavy-duty, non-reversing contactor engineered for demanding industrial and commercial HVAC applications. Designed to handle high-current motor loads with confidence, this 3-pole contactor delivers reliable switching performance backed by Schneider Electric’s proven TeSys D series platform.
Key Features
- 3-pole configuration for three-phase load switching
- 115-amp continuous current rating for high-load applications
- 120VAC, 60Hz coil voltage — compatible with standard North American control circuits
- Non-reversing design for straightforward motor starting and control
- Screw terminal connections for secure, vibration-resistant wiring
- One (1) Normally Open (NO) auxiliary contact included
- One (1) Normally Closed (NC) auxiliary contact included
Application Suitability
- Commercial and industrial HVAC compressor motor control
- Chiller and rooftop unit motor starting circuits
- Pump and fan motor switching in mechanical systems
- Motor control centers (MCCs) and panel board assemblies
Product Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: LC1D115G6
- Poles: 3
- Amperage Rating: 115 Amps
- Coil Voltage: 120VAC, 60Hz only
- Operation Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
Built to the exacting standards of the Schneider Electric TeSys D contactor family, the LC1D115G6 offers long electrical and mechanical service life, making it a trusted choice for HVAC contractors, electrical contractors, and facilities maintenance professionals. Order from Jackson Systems for fast fulfillment and expert support.
