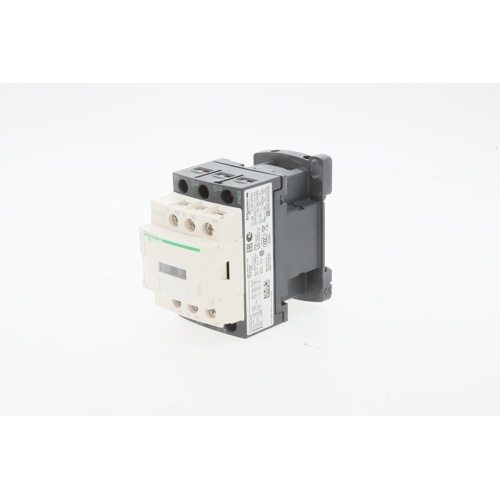

Schneider Electric (Square D) LC1D12LE7 Non-Reversing Contactor Overview
The Schneider Electric (Square D) LC1D12LE7 is a heavy-duty, non-reversing IEC contactor engineered for dependable motor and load switching in commercial and industrial HVAC applications. Featuring a 208V AC coil, this 3-pole contactor delivers 12 amps of switching capacity, making it well-suited for controlling compressors, fan motors, pumps, and other inductive loads commonly found in HVAC systems.
Key Features
- 3-pole, non-reversing contactor configuration for straightforward load control
- 208V AC coil voltage for compatibility with standard commercial power supplies
- 12-amp continuous current rating for reliable motor and resistive load switching
- Screw terminal connections for secure, vibration-resistant wiring
- One Normally Open (NO) auxiliary contact included for control circuit signaling
- One Normally Closed (NC) auxiliary contact included for interlocking or status monitoring
- Compact IEC-style form factor for space-efficient panel installation
- Part of Schneider Electric’s trusted TeSys D contactor series
Auxiliary Contacts
The LC1D12LE7 includes a built-in auxiliary contact block with one Normally Open (NO) and one Normally Closed (NC) contact. These auxiliary contacts enable integration with control circuits, indicator lights, safety interlocks, and building automation systems without the need for additional add-on blocks.
Applications
- HVAC compressor and condenser fan motor control
- Chiller and air handling unit motor switching
- Pump and blower motor control in commercial hydronic systems
- Industrial motor control panels and MCC buckets
- General-purpose load switching in control panels
Why Choose the Schneider Electric LC1D12LE7?
Schneider Electric’s TeSys D series contactors are globally recognized for their reliability, long electrical life, and ease of installation. The LC1D12LE7’s screw terminal design simplifies field wiring, while the integrated auxiliary contacts reduce component count and panel complexity. Whether you’re building a new control panel or replacing an aging contactor, the LC1D12LE7 delivers the performance and dependability that HVAC professionals demand.
