Description

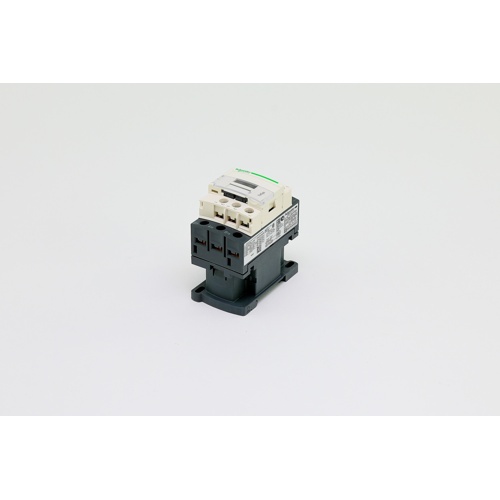

The Schneider Electric (Square D) LC1D12U7 is a heavy-duty, non-reversing IEC contactor engineered for dependable motor control and load switching in commercial and industrial HVAC applications. Featuring a 240VAC coil, this three-pole contactor delivers consistent performance in demanding electrical environments where reliability and safety are paramount.
Key Features
- Non-reversing contactor design for straightforward motor control applications
- 240VAC coil voltage for compatibility with standard commercial power systems
- 3-pole configuration suitable for three-phase motor and load control
- 12-amp continuous current rating for light-duty motor and resistive load applications
- Screw terminal connections for secure, vibration-resistant wiring
- One Normally Open (NO) and one Normally Closed (NC) auxiliary contact included for control circuit integration
- IEC-rated design from Schneider Electric’s trusted TeSys D series
Electrical Specifications
- Coil Voltage: 240VAC
- Number of Poles: 3
- Current Rating: 12 Amps
- Operation Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Application
The LC1D12U7 is ideal for use in HVAC control panels, rooftop unit electrical sections, air handling units, chiller control circuits, and other commercial building automation systems. The integrated auxiliary contacts allow for easy status feedback wiring and interlocking with other control devices, making this contactor a versatile solution for a wide range of switching and motor control needs.
Why Choose Schneider Electric (Square D)?
Schneider Electric’s TeSys D series contactors are globally recognized for their robust construction, long electrical life, and ease of installation. The LC1D12U7 continues this tradition, offering HVAC professionals a reliable, code-compliant switching solution backed by one of the industry’s most trusted electrical brands.
