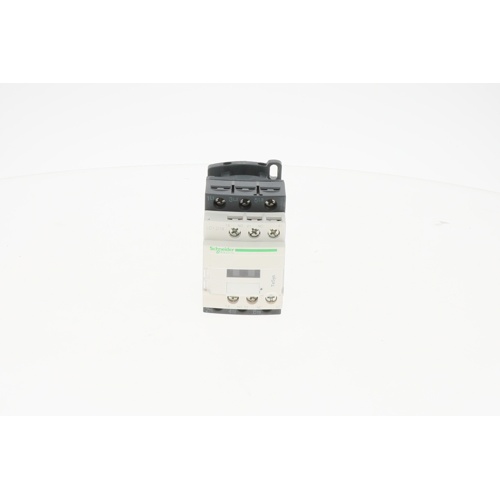

Schneider Electric LC1D18G7 Non-Reversing Contactor Overview
The Schneider Electric (Square D) LC1D18G7 is a robust, industrial-grade non-reversing contactor engineered for reliable motor control and switching applications in HVAC and commercial electrical systems. Featuring a 120VAC control coil, this contactor delivers dependable performance in a wide range of load-switching scenarios, making it a trusted choice for contractors and facilities professionals alike.
Key Features
- 120VAC control coil for compatibility with standard control circuits
- 3-pole configuration for three-phase load switching
- 18-amp continuous current rating
- Non-reversing design for straightforward motor and load control
- Screw terminal connections for secure, tool-friendly wiring
- One Normally Closed (NC) auxiliary contact included
- One Normally Open (NO) auxiliary contact included
- Compact TeSys D series form factor for panel space efficiency
Auxiliary Contacts
The LC1D18G7 includes integrated auxiliary contacts — one Normally Closed (NC) and one Normally Open (NO) — providing built-in signaling and interlocking capability without the need for additional add-on blocks in many standard applications.
Applications
- HVAC motor starters and compressor control
- Commercial and industrial motor switching
- Pump and fan motor control panels
- Lighting and heating load switching
- Building automation and control panel integration
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: LC1D18G7
- Coil Voltage: 120VAC
- Number of Poles: 3
- Current Rating: 18 Amps
- Operation Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Closed (NC) + 1 Normally Open (NO)
