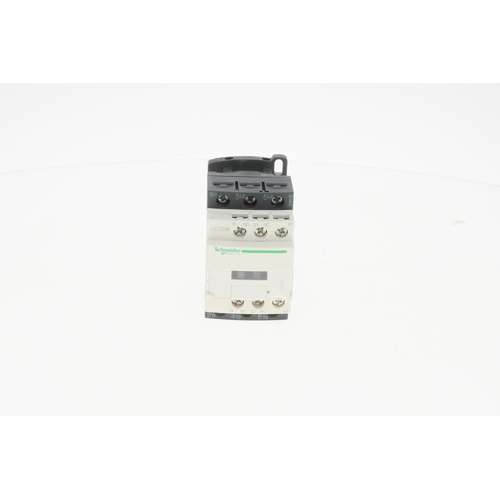

Schneider Electric (Square D) LC1D18LE7 Non-Reversing Contactor Overview
The Schneider Electric (Square D) LC1D18LE7 is a heavy-duty, industrial-grade non-reversing contactor engineered for reliable motor control and load switching in HVAC and commercial electrical applications. Featuring a 208VAC coil and a robust 3-pole configuration rated at 18 amps, this contactor delivers dependable performance in demanding environments where precise, consistent switching is essential.
Key Features
- 3-pole, non-reversing contactor design for straightforward motor and load control
- 18-amp continuous current rating for compatibility with a wide range of HVAC and commercial loads
- 208VAC coil voltage for compatibility with standard commercial power systems
- Screw terminal connections for secure, code-compliant wiring
- One normally open (NO) auxiliary contact for control circuit integration
- One normally closed (NC) auxiliary contact for interlock or status signaling
- Compact, panel-ready form factor suitable for motor control centers and electrical enclosures
- Schneider Electric (Square D) quality construction for long service life and dependable operation
Auxiliary Contacts
The LC1D18LE7 includes one normally open (NO) and one normally closed (NC) auxiliary contact, providing built-in flexibility for control circuit wiring, status indication, or safety interlock applications — eliminating the need for add-on auxiliary contact blocks in many installations.
Applications
- HVAC compressor and fan motor control
- Commercial and industrial motor starting
- Lighting and heating load switching
- Motor control center (MCC) panel assemblies
- Building automation and electrical control panels
Specifications
- SKU: LC1D18LE7
- Brand: Schneider Electric (Square D)
- Coil Voltage: 208VAC
- Number of Poles: 3
- Current Rating: 18 Amps
- Contactor Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
