Description

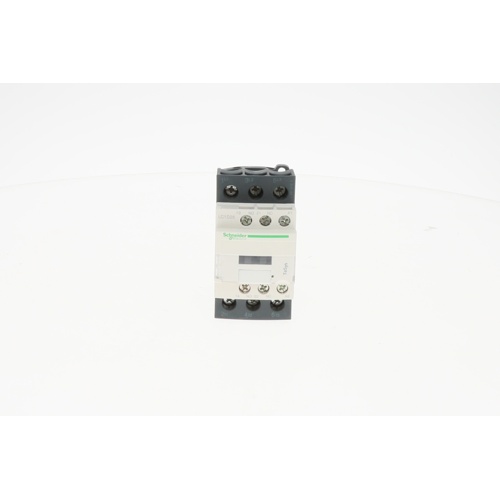

The Schneider Electric (Square D) LC1D25F7 is a heavy-duty, non-reversing IEC contactor engineered for reliable motor control and load switching in commercial and industrial HVAC applications. With a robust 3-pole configuration rated at 25 amps and a 110VAC control coil, this contactor delivers consistent, dependable performance in demanding electrical environments.
Built on Schneider Electric’s trusted TeSys D platform, the LC1D25F7 is designed for easy installation and long service life. Screw-type power terminals provide a secure, vibration-resistant connection, while the integrated auxiliary contact block — featuring one normally closed (NC) and one normally open (NO) contact — enables flexible control circuit wiring for interlocking, signaling, or feedback functions.
Key Features
- Non-reversing, 3-pole contactor configuration
- 25-amp continuous current rating
- 110VAC control coil (F7 coil designation)
- Screw-type power and control terminals for secure connections
- One normally closed (NC) auxiliary contact
- One normally open (NO) auxiliary contact
- Part of the Schneider Electric TeSys D contactor family
- IEC-rated design suitable for commercial and industrial applications
Typical Applications
- HVAC motor control panels and air handling units
- Compressor and fan motor switching
- Commercial refrigeration control circuits
- Pump and blower motor starters
- Industrial automation and load control panels
Why Choose the LC1D25F7?
Schneider Electric’s TeSys D series contactors are globally recognized for their reliability, compact footprint, and ease of integration. The LC1D25F7’s combination of a 110VAC coil, screw terminals, and built-in auxiliary contacts makes it a versatile, drop-in solution for a wide range of HVAC and industrial control applications. Its durable construction ensures long operational life even in high-cycle environments.
