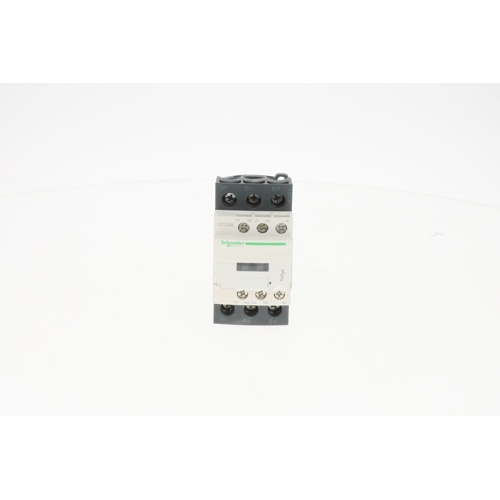

Schneider Electric (Square D) LC1D25G7 Non-Reversing Contactor Overview
The Schneider Electric (Square D) LC1D25G7 is a heavy-duty, industrial-grade non-reversing contactor engineered for reliable motor control and load switching in HVAC and commercial electrical applications. With a 120VAC coil, this contactor is designed for seamless integration into standard North American control circuits, making it a go-to solution for HVAC technicians, electrical contractors, and facility maintenance professionals.
Key Features
- 3-pole configuration for three-phase load control
- 25-amp continuous current rating for robust load handling
- 120VAC coil voltage for compatibility with standard control circuits
- Non-reversing design for straightforward motor starting and load switching
- Screw terminal connections for secure, tool-friendly wiring
- One Normally Open (NO) auxiliary contact included
- One Normally Closed (NC) auxiliary contact included
- Part of Schneider Electric’s trusted TeSys D contactor series
Auxiliary Contacts
The LC1D25G7 comes factory-equipped with one Normally Open (NO) and one Normally Closed (NC) auxiliary contact, providing built-in signaling and interlocking capability without the need for additional add-on blocks. These auxiliary contacts are ideal for status indication, control circuit interlocking, and safety logic in HVAC and industrial control panels.
Applications
- HVAC compressor and motor control
- Commercial and industrial motor starters
- Lighting and heating load switching
- Control panel integration
- Fan and pump motor control
Specifications
- SKU / Part Number: LC1D25G7
- Brand: Schneider Electric (Square D)
- Coil Voltage: 120VAC
- Number of Poles: 3
- Current Rating: 25 Amps
- Contactor Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
Why Choose Schneider Electric (Square D)?
Schneider Electric’s Square D brand is globally recognized for electrical reliability, innovation, and safety. The TeSys D series contactors are built to IEC standards and are widely used across HVAC, industrial, and commercial applications worldwide. The LC1D25G7 delivers the dependability and ease of installation that professionals demand on every job.
