Description

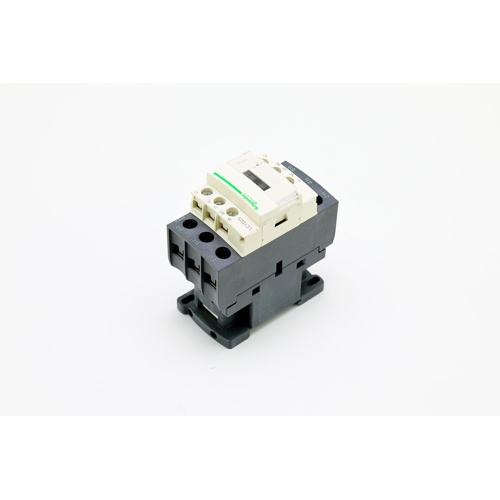

The Schneider Electric (Square D) LC1D25LE7 is a heavy-duty, non-reversing IEC contactor engineered for dependable switching of three-phase and single-phase electrical loads in commercial and industrial HVAC applications. With a 208VAC coil, 25-amp load rating, and a rugged three-pole configuration, this contactor delivers the performance and longevity that HVAC professionals demand in motor control, compressor switching, and load management circuits.
Key Features
- 208VAC coil voltage for compatibility with standard commercial HVAC power systems
- 3-pole, non-reversing design for straightforward load switching
- 25-amp continuous current rating for motors and resistive loads
- Screw terminal connections for fast, secure field wiring
- One Normally Open (NO) auxiliary contact included
- One Normally Closed (NC) auxiliary contact included
- IEC-rated construction for compact panel footprint
- Part of Schneider Electric’s trusted TeSys D contactor series
Auxiliary Contacts
The LC1D25LE7 comes equipped with one normally open (NO) and one normally closed (NC) auxiliary contact, enabling status indication, interlocking, and control circuit integration without the need for additional add-on blocks in many applications.
Applications
- HVAC compressor and motor control panels
- Rooftop unit and air handling unit electrical panels
- Commercial refrigeration and chiller control circuits
- Three-phase motor starting and switching
- Industrial load management and automation panels
Why Choose Schneider Electric (Square D)?
Schneider Electric’s TeSys D series contactors are globally recognized for their reliability, compact design, and ease of installation. The LC1D25LE7 is built to IEC standards, ensuring consistent performance across a wide range of operating environments. Screw-clamp terminals simplify installation and reduce the risk of loose connections over time.
Specifications
- SKU: LC1D25LE7
- Brand: Schneider Electric (Square D)
- Coil Voltage: 208VAC
- Number of Poles: 3
- Current Rating: 25 Amps
- Operation Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
