Description

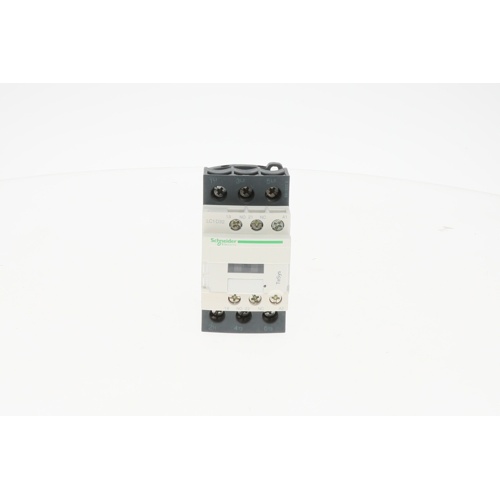

The Schneider Electric (Square D) LC1D32B7 is a heavy-duty, non-reversing IEC contactor engineered for dependable motor and load switching in commercial and industrial HVAC applications. Featuring a 24VAC control coil, this contactor is well-suited for integration with standard low-voltage control circuits commonly found in rooftop units, air handlers, chillers, and other HVAC equipment.
Key Features
- 24VAC control coil for compatibility with standard HVAC low-voltage control systems
- 3-pole configuration for three-phase load switching
- 32-amp continuous current rating for reliable motor and resistive load control
- Non-reversing design for straightforward single-direction motor applications
- Screw terminal connections for secure, vibration-resistant wiring
- One Normally Open (NO) auxiliary contact for status monitoring or interlocking
- One Normally Closed (NC) auxiliary contact for safety or interlock circuits
Electrical Specifications
- Control Coil Voltage: 24VAC
- Number of Poles: 3
- Current Rating: 32 Amps
- Contactor Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Applications
- Commercial HVAC compressor and fan motor switching
- Air handling unit motor control
- Chiller and rooftop unit electrical panels
- Industrial motor control centers
- General-purpose load switching in building automation systems
Why Choose Schneider Electric (Square D)?
Schneider Electric’s Square D line is a globally recognized leader in electrical distribution and automation. The LC1D series contactors are built to IEC standards, offering exceptional durability, consistent performance, and easy maintenance. The LC1D32B7 is an ideal drop-in solution for OEM replacements or new panel builds requiring a compact, reliable 3-pole contactor.
