Description

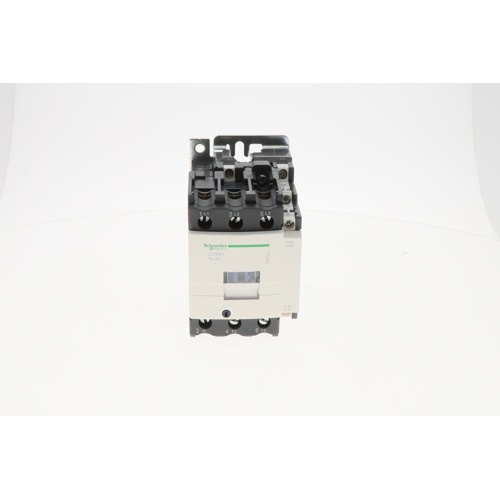

The Schneider Electric (Square D) LC1D40G7 is a heavy-duty IEC-style non-reversing contactor engineered for reliable motor control and load switching in commercial and industrial HVAC applications. With a 120VAC coil, 3-pole configuration, and 40-amp continuous current rating, this contactor delivers dependable performance in demanding electrical environments.
Key Features
- 3-pole, non-reversing contactor design for straightforward motor and load control
- 40-amp continuous current rating for robust load handling
- 120VAC (60 Hz) control coil for compatibility with standard North American control circuits
- Screw terminal connections for secure, tool-assisted wiring
- One Normally Closed (NC) auxiliary contact included
- One Normally Open (NO) auxiliary contact included
- IEC-rated contactor from Schneider Electric’s TeSys D series
Auxiliary Contacts
The LC1D40G7 includes both a Normally Closed (NC) and a Normally Open (NO) auxiliary contact, enabling flexible integration with control circuits, interlocks, and status indication systems without the need for add-on auxiliary contact blocks.
Applications
- HVAC compressor and fan motor control
- Commercial refrigeration equipment
- Industrial motor starters and control panels
- Pump and blower motor switching
- General-purpose load switching in control panels
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: LC1D40G7
- Poles: 3
- Current Rating: 40 Amps
- Coil Voltage: 120VAC
- Operation: Non-reversing
- Terminal Type: Screw terminals
- Auxiliary Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
- Series: TeSys D (IEC-style)
