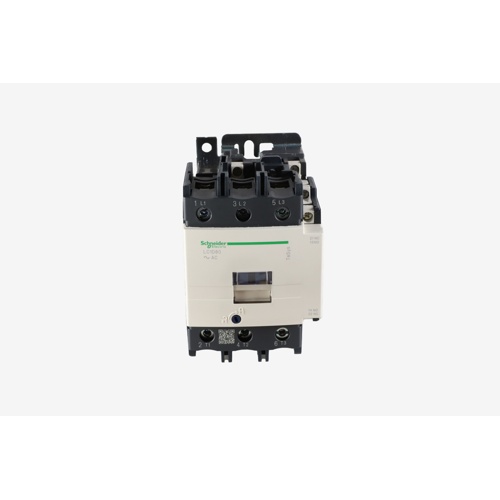

Schneider Electric (Square D) LC1D80G6 Non-Reversing Contactor Overview
The Schneider Electric (Square D) LC1D80G6 is a heavy-duty, IEC-style non-reversing contactor engineered for reliable motor and load switching in commercial and industrial HVAC applications. With an 80-amp rating across three poles and a 120VAC/60 Hz control coil, this contactor delivers the switching capacity and control compatibility needed for large fan motors, compressors, condensing units, and other demanding electrical loads.
Key Features
- Control Coil Voltage: 120VAC, 60 Hz only — compatible with standard North American control circuits
- Poles: 3-Pole configuration for three-phase load switching
- Current Rating: 80 Amps — suitable for high-capacity motors and HVAC equipment
- Operation Type: Non-reversing — designed for single-direction motor and load control
- Terminal Type: Screw terminals for secure, vibration-resistant wiring connections
- Auxiliary Contacts: One Normally Open (NO) and One Normally Closed (NC) auxiliary contact included for interlocking, signaling, or control circuit feedback
- Brand: Schneider Electric (Square D) — a globally recognized leader in electrical distribution and automation
Auxiliary Contact Configuration
The LC1D80G6 includes a built-in auxiliary contact block featuring one Normally Open (NO) and one Normally Closed (NC) contact. These auxiliary contacts enable integration with control panels, PLCs, safety interlocks, and alarm circuits without the need for additional add-on contact blocks in most standard applications.
Applications
- Commercial HVAC compressor and fan motor control
- Condensing unit and air handling unit switching
- Industrial motor starters and control panels
- Pump and blower motor applications
- Building automation and mechanical system control circuits
Why Choose the Schneider Electric LC1D80G6?
The LC1D Series from Schneider Electric (Square D) is one of the most trusted IEC contactor families in the industry, known for long electrical life, robust construction, and broad compatibility with motor starter accessories. The LC1D80G6 is an ideal drop-in solution for OEM replacements and new installations where a reliable 80A, 3-pole, 120VAC-coil contactor with integrated auxiliary contacts is required.
