Description

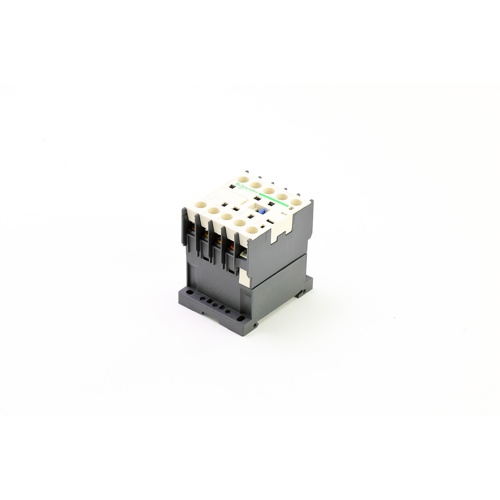

The Schneider Electric (Square D) LC1K1210G7 is a TeSys K series 3-pole non-reversing contactor engineered for dependable motor control and switching applications in commercial and industrial HVAC systems. With a 20-amp current rating and a 120-volt AC control coil, this contactor delivers consistent, low-maintenance performance across a wide range of load types.
Product Overview
Designed as part of Schneider Electric’s globally recognized TeSys K contactor family, the LC1K1210G7 offers a compact footprint without sacrificing electrical capacity. Its non-reversing configuration makes it ideal for single-direction motor starters, compressor control circuits, fan motor switching, and general-purpose load control in HVAC equipment.
Key Features
- 3-pole non-reversing contactor for single-direction motor control
- 20A full-load current rating
- 120V AC control coil voltage (G7 coil designation)
- Compact TeSys K series design for space-efficient panel installation
- 1 normally open (NO) auxiliary contact included
- Suitable for AC-3 and AC-4 motor duty applications
- Screw-clamp terminal connections for secure wiring
- DIN rail or screw-mount compatible
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: LC1K1210G7
- Series: TeSys K
- Number of Poles: 3
- Load Current Rating: 20A
- Control Coil Voltage: 120V AC (60 Hz)
- Operation: Non-Reversing
- Auxiliary Contacts: 1 NO
- Mounting: DIN rail or panel mount
Common Applications
- HVAC compressor motor starters
- Condenser and evaporator fan motor control
- Air handling unit motor switching
- Commercial refrigeration equipment
- General industrial motor control panels
