Description

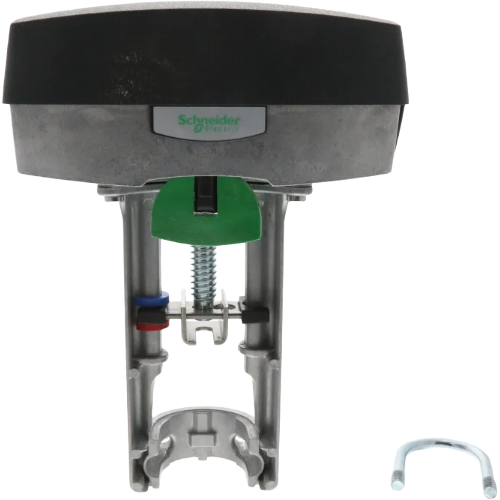

The Schneider Electric (Barber Colman) M800A-S2 is a high-performance Forta series globe valve actuator engineered for precise control in commercial and industrial HVAC hydronic systems. Designed to operate on 24V power, it supports both floating and proportional control modes, making it a versatile solution for a wide range of building automation and valve control applications.
Control Signal Compatibility
- Floating control mode for simple open/close positioning
- Proportional control via 0 to 10Vdc input signal
- Proportional control via 2 to 10Vdc input signal
- Proportional control via 4 to 20mA input (requires 500 Ohm resistor, included)
- 2 to 10Vdc feedback signal for position confirmation and system integration
Actuator Performance
- 180 Lbf (pound-force) output for reliable valve actuation under demanding conditions
- Compatible with Forta series globe valves for matched system performance
- U-bolt mounting design for secure, stable installation
Auxiliary Switching
- 2 SPDT (Single Pole Double Throw) auxiliary switches for end-of-travel indication or ancillary equipment control
- Enables integration with building automation systems, interlocks, and alarm circuits
Key Features
- Supply voltage: 24V
- Control modes: Floating or Proportional
- Input signals: 0–10Vdc, 2–10Vdc, or 4–20mA (with 500 Ohm resistor)
- Position feedback: 2–10Vdc
- Force output: 180 Lbf
- Mounting: U-bolt
- Auxiliary switches: 2 SPDT
- Series: Forta Globe Valve Actuator
- Brand legacy: Barber Colman / Schneider Electric
The M800A-S2 is the ideal choice for contractors and building engineers seeking a robust, multi-signal-compatible actuator for globe valve control in hydronic heating and cooling systems. Its dual auxiliary switches and analog feedback output make it well-suited for sophisticated BAS (Building Automation System) integration.
