Description

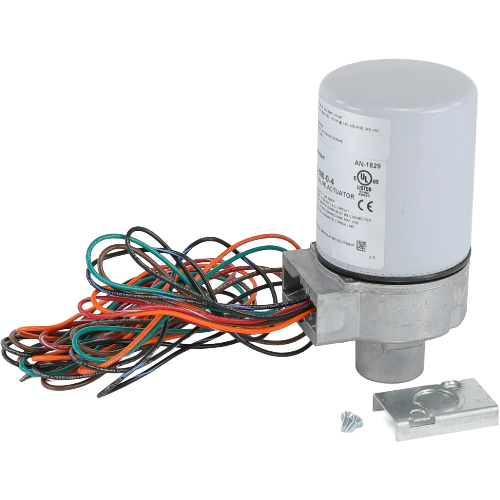

The Schneider Electric (Barber Colman) MA-5213-500 is a two-position hydraulic actuator engineered for reliable valve and damper control in commercial HVAC and building automation applications. Featuring a 24V power supply, a built-in SPDT auxiliary switch, and a 15-second spring return, this actuator delivers dependable fail-safe operation and precise two-position control in a NEMA 1 enclosure rated for indoor use.
Key Features
- Two-position hydraulic actuator for valve or damper control
- 24V operating voltage for compatibility with standard control circuits
- SPDT (Single-Pole Double-Throw) auxiliary switch for status feedback or interlocking
- 18VA input power rating
- 14 Watt input power rating
- 15-second spring return for fast, reliable fail-safe positioning
- NEMA 1 enclosure for indoor commercial installations
Application
The MA-5213-500 is ideal for use in commercial building automation systems, hydronic heating and cooling systems, and air handling unit controls where dependable two-position actuation and fail-safe spring return are required. The integrated SPDT auxiliary switch enables easy integration with building management systems for end-of-travel feedback or interlocking control sequences.
Specifications
- Brand: Schneider Electric (Barber Colman)
- Model / SKU: MA-5213-500
- Actuator Type: Two Position Hydraulic
- Voltage: 24V
- Auxiliary Switch: SPDT
- Input Power (VA): 18VA
- Input Power (Watts): 14W
- Spring Return Time: 15 Seconds
- Enclosure Rating: NEMA 1
