Description

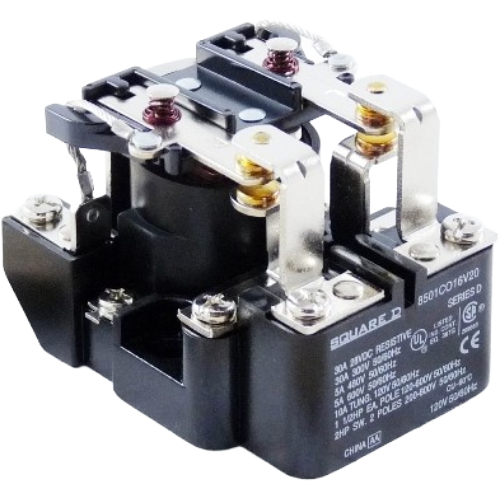

The Schneider Electric (Square D) 8501CO16V20 is a heavy-duty DPDT power relay engineered for dependable switching performance in HVAC systems, building automation, and industrial control applications. With a 120V coil voltage and 30A contact rating, this relay delivers the robust capacity needed to handle demanding load-switching tasks in commercial and light industrial environments.
Key Features
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit switching
- 120V AC coil voltage for compatibility with standard control circuits
- 30A contact current rating for high-load switching capability
- Square D / Schneider Electric quality construction for long service life
- Suitable for HVAC control panels, building automation, and industrial switching applications
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 8501CO16V20
- Coil Voltage: 120V AC
- Contact Rating: 30A
- Contact Configuration: DPDT (Double Pole Double Throw)
- Series: 8501 Type CO Power Relay
Applications
- HVAC control panels and switching circuits
- Building automation and energy management systems
- Industrial machinery and process control
- Motor control and load switching
- Commercial electrical distribution panels
The Square D 8501CO series is a trusted platform in the electrical controls industry, recognized for consistent performance and compatibility with a wide range of control panel configurations. The 8501CO16V20 is an ideal replacement or upgrade relay for technicians working on commercial HVAC equipment and industrial control systems.
