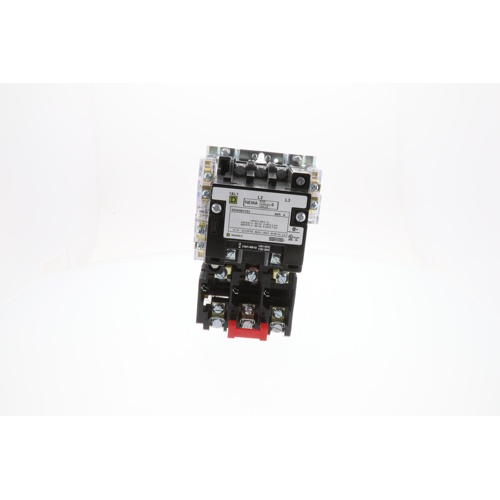

Schneider Electric (Square D) 8536SBO2S2V02 Motor Starter Overview
The Schneider Electric (Square D) 8536SBO2S2V02 is a full-voltage, non-reversing motor starter engineered for dependable three-phase motor control and protection in commercial and industrial HVAC applications. Built on Square D’s trusted 8536 Series platform, this Size 0 starter delivers robust performance in a compact footprint, making it an ideal choice for fan motors, pump motors, compressors, and other motor-driven HVAC equipment.
Key Specifications
- Control Voltage: 120V AC
- Full Load Amperage: 18A
- Phases: 3-Phase
- NEMA Size: Size 0
- Series: Square D 8536
- Type: Full Voltage Non-Reversing (FVNR) Motor Starter
- Brand: Schneider Electric / Square D
- SKU: 8536SBO2S2V02
Features & Benefits
- Full-voltage, across-the-line starting for straightforward motor control
- Three-phase design provides balanced load distribution and motor protection
- Size 0 NEMA rating suits smaller horsepower motors commonly found in HVAC systems
- 120V coil voltage for easy integration with standard control circuits
- Built-in overload relay protection helps prevent motor burnout from overcurrent conditions
- Rugged construction from Schneider Electric ensures long service life in demanding environments
- Compatible with Square D 8536 Series accessories for flexible system configuration
Typical Applications
- Commercial HVAC fan and blower motors
- Hydronic circulating pump motors
- Compressor motor control panels
- Air handling unit motor circuits
- Industrial motor control centers (MCCs)
Why Choose Square D Motor Starters?
Square D by Schneider Electric is a globally recognized leader in electrical distribution and motor control. The 8536 Series motor starters are renowned for their reliability, ease of maintenance, and broad compatibility with industrial and commercial control systems. Whether you’re building a new panel or replacing an aging starter, the 8536SBO2S2V02 delivers the performance and protection your motors demand.
