Description

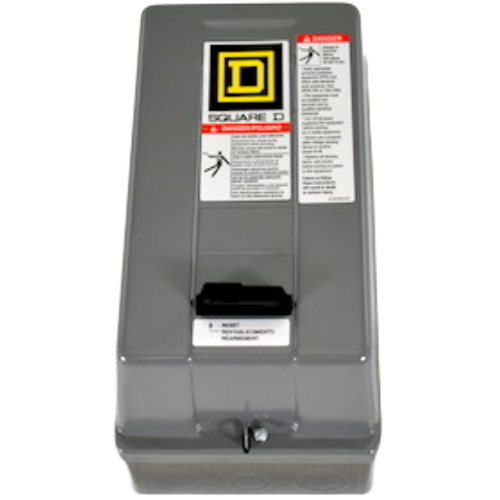

The Schneider Electric (Square D) 8536SCG3V02H30S is a non-reversing, 3-phase, Size 1 full-voltage motor starter equipped with a solid-state overload relay (SSOLR). Engineered for dependable motor protection and control in commercial and industrial HVAC applications, this starter delivers the trusted performance and quality that Square D is known for worldwide.
Product Overview
The 8536SCG3V02H30S belongs to Square D’s 8536 Series of full-voltage, non-reversing motor starters. Designed for three-phase motor applications, it integrates a solid-state overload relay (SSOLR) for precise, electronic overload protection — eliminating the need for a separate bimetallic overload relay and offering improved accuracy and repeatability across a wide range of operating conditions.
Key Features
- Non-reversing full-voltage motor starter configuration
- 3-phase motor control for commercial and industrial HVAC equipment
- NEMA Size 1 — suitable for motors up to 10 HP at 460V / 7.5 HP at 230V (three-phase)
- Solid-State Overload Relay (SSOLR) for accurate, electronic motor protection
- Part of the trusted Square D 8536 Series product line
- Designed for reliable, long-service-life performance in demanding environments
Application
Ideal for use in HVAC motor control applications including air handling units, chiller systems, cooling towers, pumps, fans, and other three-phase motor-driven equipment. The solid-state overload relay provides consistent protection against overloads, phase loss, and phase imbalance conditions.
Why Choose Square D
Schneider Electric’s Square D brand is a globally recognized leader in electrical distribution and motor control. The 8536 Series starters are built to NEMA standards, ensuring compatibility and interchangeability with a wide range of motor control center (MCC) and panel configurations.
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: 8536SCG3V02H30S
- Type: Non-Reversing Full-Voltage Motor Starter
- Phases: 3-Phase
- NEMA Size: 1
- Overload Relay Type: Solid-State (SSOLR)
- Series: Square D 8536
