Description

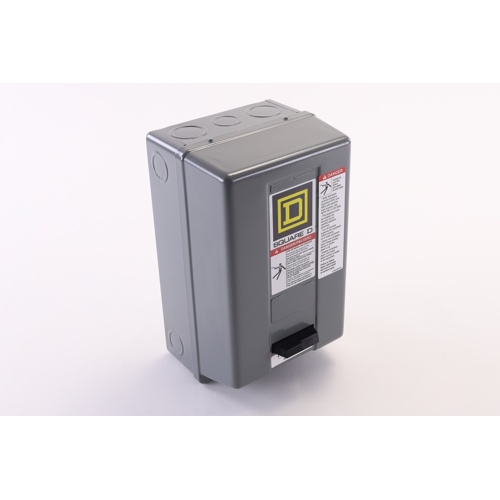

The Schneider Electric (Square D) 8536SCG3V02S is a heavy-duty, three-pole polyphase AC magnetic NEMA motor starter engineered for reliable motor control in commercial and industrial HVAC and mechanical applications. Housed in a NEMA Type 1 general purpose enclosure, this unit is ready for immediate panel or wall mounting in indoor environments.
Key Specifications
- Control Coil Voltage: 110VAC / 120VAC, 50/60 Hz — separate control circuit
- Continuous Amp Rating: 27 Amps
- NEMA Starter Size: 1
- Pole Configuration: Three-Pole, Polyphase
- Enclosure Type: NEMA Type 1 General Purpose (indoor use)
- Operation: AC Magnetic
- Brand: Schneider Electric / Square D
- SKU / Part Number: 8536SCG3V02S
Product Overview
The 8536SCG3V02S features a separate control circuit coil rated at 110VAC/120VAC at 50/60 Hz, making it compatible with standard control voltages found in HVAC systems, pumps, fans, compressors, and other three-phase motor-driven equipment. The NEMA Size 1 rating supports motors up to the standard horsepower limits defined for that class, providing a reliable and code-compliant solution for motor protection and switching.
Features & Benefits
- Three-pole design handles three-phase polyphase motor loads
- Separate control voltage (110/120VAC) allows flexible integration with existing control circuits
- 27A continuous amp rating for dependable, sustained motor operation
- NEMA Type 1 general purpose enclosure protects internal components in standard indoor environments
- AC magnetic operation ensures smooth, consistent motor starting and stopping
- Square D quality construction for long service life and minimal maintenance
- NEMA Size 1 classification for straightforward selection and code compliance
Typical Applications
- HVAC fan and blower motor control
- Pump motor starters in hydronic and chilled water systems
- Compressor motor switching
- Commercial and light industrial three-phase motor control panels
