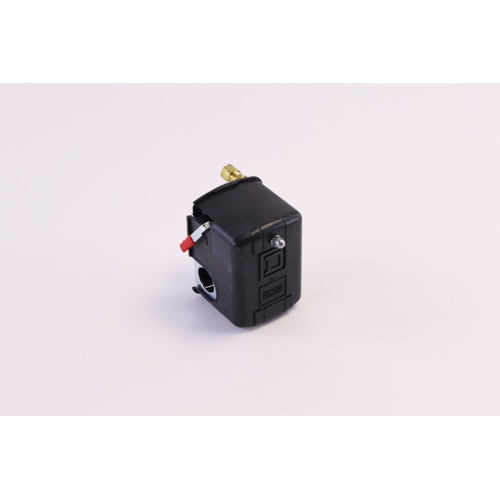

Schneider Electric (Square D) 9013FHG12J69M1XZ22 Pressure Switch Overview
The Schneider Electric (Square D) 9013FHG12J69M1XZ22 is a heavy-duty, 2-pole electromechanical pressure switch engineered for reliable pressure monitoring and control in HVAC, industrial, and commercial applications. Featuring a 70/150 PSI pressure range with a set point of 120 PSI and an open-on-rise (off) action, this switch provides accurate, repeatable cut-in and cut-out performance to protect equipment and maintain system efficiency.
Key Features
- Pressure range: 70 PSI (cut-in) / 150 PSI (cut-out)
- Set point: 120 PSI — opens (de-energizes) on pressure rise
- 2-Pole (2P) configuration for versatile circuit control
- Square D 9013F series — industry-trusted electromechanical pressure switch platform
- Designed for use in pumping, compressor, and HVAC pressure control systems
- Durable construction for long service life in demanding environments
- Direct OEM replacement for Square D 9013FHG12J69M1XZ22 applications
Specifications
- SKU / Part Number: 9013FHG12J69M1XZ22
- Brand: Schneider Electric (Square D)
- Type: Electromechanical Pressure Switch
- Pressure Range: 70 – 150 PSI
- Set Point: 120 PSI (opens on pressure rise)
- Poles: 2-Pole (2P)
- Action: Opens on Rise (Off)
- Series: 9013F
Applications
- HVAC compressor and refrigeration system pressure control
- Pump pressure monitoring and protection
- Industrial air compressor on/off control
- Commercial building automation pressure sensing
- Water pressure booster systems
Why Choose the Square D 9013F Series?
The Square D 9013F pressure switch series is a proven, globally recognized solution for pressure control in commercial and industrial environments. With robust internal components and precise calibration, the 9013FHG12J69M1XZ22 delivers the dependable switching performance that HVAC technicians and mechanical contractors rely on. Order from Jackson Systems for fast fulfillment and expert support.
