Description

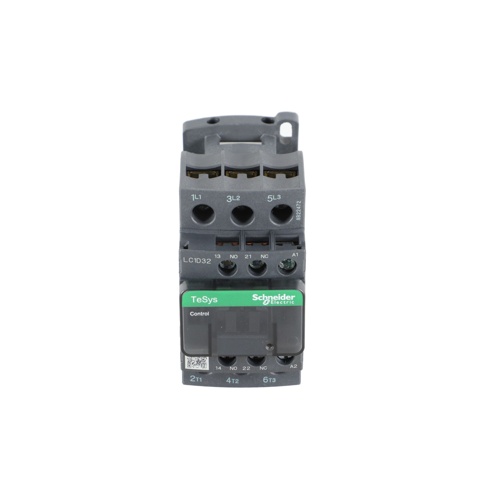

The Schneider Electric (Square D) LC1D32T7 is a heavy-duty, non-reversing IEC contactor engineered for demanding HVAC and industrial electrical control applications. With a 480VAC coil, three load-carrying poles rated at 32 amps, and a built-in auxiliary contact block, this contactor delivers dependable switching performance in motor control centers, air handling units, chillers, and other commercial HVAC equipment.
Key Features
- 480VAC coil voltage for compatibility with standard commercial power systems
- 3-pole configuration for three-phase load control
- 32-amp continuous current rating for robust motor and load switching
- Non-reversing design for straightforward single-direction motor control
- Screw terminal connections for secure, tool-friendly field wiring
- One Normally Open (NO) auxiliary contact for status signaling or interlocking
- One Normally Closed (NC) auxiliary contact for safety interlock or control circuit use
Specifications
- Brand: Schneider Electric (Square D)
- Model / SKU: LC1D32T7
- Coil Voltage: 480VAC
- Number of Poles: 3
- Current Rating: 32 Amps
- Contactor Type: Non-Reversing
- Terminal Type: Screw Terminals
- Auxiliary Contacts: 1 Normally Open (NO), 1 Normally Closed (NC)
Applications
- Commercial HVAC motor control (air handlers, chillers, cooling towers)
- Motor control centers (MCCs)
- Industrial machinery and equipment switching
- Pump and fan motor control circuits
- Building automation and control panel integration
Backed by Schneider Electric’s trusted TeSys D series engineering, the LC1D32T7 is built to IEC standards and offers long mechanical and electrical service life. Its compact footprint and DIN rail or panel-mount compatibility make it a versatile solution for new installations and replacement projects alike.
