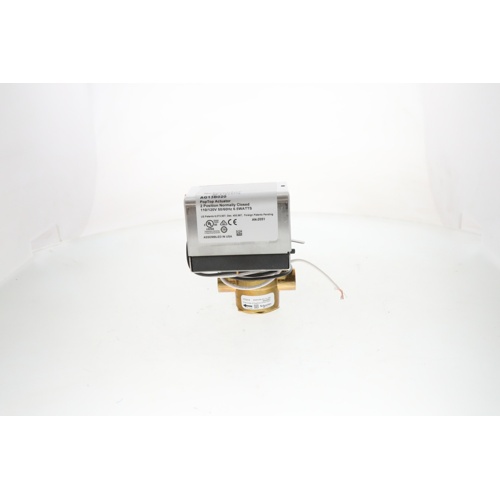

Schneider Electric (Erie) VT2212G13B020 Two-Way Normally Closed Zone Valve
The Schneider Electric (Erie) VT2212G13B020 is a two-way, normally closed zone valve assembly engineered for precise hydronic zone control in residential and light commercial heating and cooling systems. With a spring-return mechanism and two-position actuation, this valve delivers reliable on/off flow control that snaps open on a call for heating or cooling and returns to the closed position the moment power is removed — protecting your system and conserving energy.
Key Features
- Two-way, normally closed (NC) valve configuration
- 1/2″ sweat (solder) end connections for secure, leak-free installation
- 2.5 Cv flow coefficient for optimized hydronic system performance
- 120VAC operating voltage — compatible with standard residential and commercial control wiring
- Spring-return actuator ensures fail-safe closure upon loss of power
- Two-position (open/close) zone control for straightforward integration with zone panels and thermostats
- Complete valve and actuator assembly — ready to install out of the box
Applications
- Hydronic heating and cooling zone control
- Radiant floor heating systems
- Fan coil unit control
- Baseboard and panel radiator zoning
- Residential and light commercial HVAC systems
Specifications
- SKU / Part Number: VT2212G13B020
- Brand: Schneider Electric (Erie)
- Valve Type: Two-Way, Normally Closed
- Connection Size: 1/2″
- Connection Type: Sweat (Solder)
- Flow Coefficient (Cv): 2.5
- Voltage: 120VAC
- Actuator Type: Spring Return
- Control Action: Two-Position (On/Off)
The Erie VT2212G13B020 is a trusted solution from Schneider Electric’s Erie Controls line — a brand with decades of proven performance in hydronic zone valve technology. Order from Jackson Systems for expert support and fast fulfillment.
