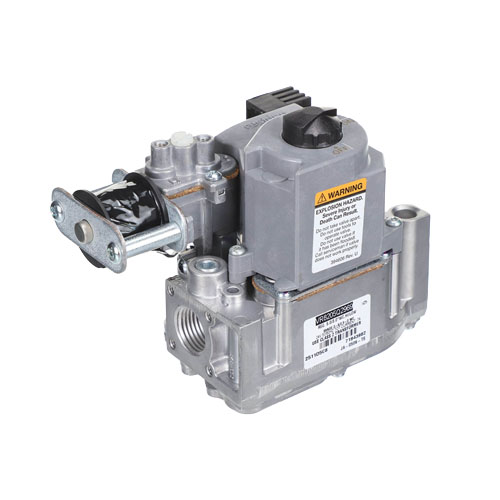

SCHWANK JA-0506-TS Gas Valve NG 2-Stage 5″-3″ W.C.

Description

SCHWANK JA-0506-TS Two-Stage Natural Gas Valve

The SCHWANK JA-0506-TS is a two-stage natural gas (NG) gas valve engineered for precise fuel control in commercial and industrial radiant heating applications. Designed as a genuine SCHWANK replacement part, this valve delivers dependable, staged gas flow regulation — helping maintain consistent burner performance and energy efficiency across a wide range of operating conditions.

Key Features

• Two-stage operation for improved combustion control and energy efficiency
• Natural gas (NG) compatible fuel type
• Inlet pressure rating: 5″ W.C. (water column)
• Outlet pressure rating: 3″ W.C. (water column)
• Genuine SCHWANK OEM replacement part (SKU: JA-0506-TS)
• Designed for use in SCHWANK radiant heating systems
• Supports reliable, staged burner ignition and modulation

Application

This gas valve is intended for use as a direct replacement component in compatible SCHWANK radiant heater systems. Two-stage gas valves allow the burner to operate at a reduced firing rate during lower demand periods and ramp up to full capacity when needed, reducing short-cycling and improving overall system longevity. Proper pressure ratings (5″ W.C. inlet / 3″ W.C. outlet) must be verified against your specific SCHWANK unit requirements before installation.

Installation Notes

• Verify compatibility with your specific SCHWANK heater model before ordering
• Ensure natural gas supply pressure matches the 5″ W.C. inlet specification
• Installation should be performed by a qualified HVAC or gas technician in accordance with local codes
• Consult the SCHWANK service manual for wiring and mounting specifications
