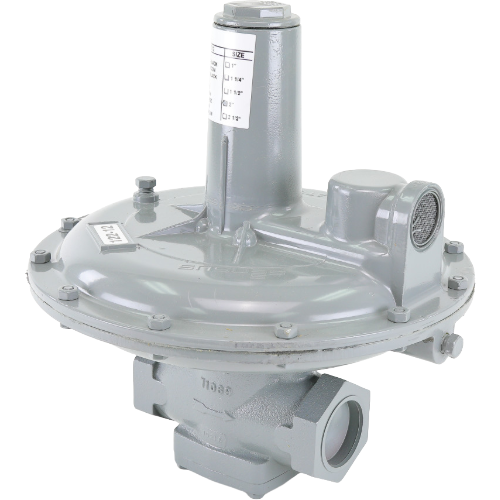

Sensus Gas Division 122-12-2-ORANGE High Capacity Gas Regulator
The Sensus Gas Division 122-12-2-ORANGE is a 2-inch high capacity gas pressure regulator engineered for demanding commercial and industrial gas distribution applications. Designed to deliver consistent, reliable downstream pressure control, this regulator handles a maximum inlet pressure of 15 PSI (pounds per square inch) and provides an outlet pressure range of 12 to 28 inches water column (” W.C.), making it well-suited for medium- to high-volume gas flow systems.
Key Features
- 2″ pipe connection size for high-capacity gas flow applications
- Maximum inlet pressure: 15 PSI (#)
- Outlet pressure range: 12–28″ W.C. (inches water column)
- High-capacity regulator design for commercial and industrial gas systems
- ORANGE color designation for easy field identification and pressure-range coding
- Built to Sensus Gas Division quality and performance standards
Specifications
- SKU: 122-12-2-ORANGE
- Brand: Sensus Gas Division
- Connection Size: 2″
- Maximum Inlet Pressure: 15 PSI
- Outlet Pressure Range: 12–28″ W.C.
- Type: High Capacity Gas Regulator
Applications
Ideal for natural gas and LP gas distribution systems in commercial buildings, industrial facilities, and utility service applications where precise downstream pressure regulation and high flow capacity are required. The color-coded ORANGE spring designation allows technicians to quickly identify the regulator’s pressure range during installation and maintenance.
