Description

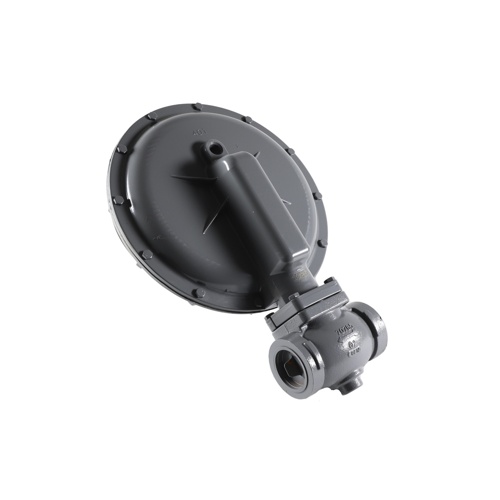

Sensus Gas Division 243-12-2 Gas Pressure Regulator Overview
The Sensus Gas Division 243-12-2 is a 2-inch standard body gas pressure regulator engineered for reliable pressure control in commercial and industrial gas distribution systems. Part of the trusted Sensus 243 series, this regulator features a 3/4-inch orifice, a factory set point of 30 inches water column (W.C.), and a green-coded spring rated for an outlet pressure range of 6 to 14 inches W.C. — making it well suited for medium-pressure gas service applications.
Key Features
- 2-inch standard body construction for robust, high-flow gas service
- 3/4-inch orifice for precise flow and pressure control
- Factory set outlet pressure of 30″ W.C.
- Green spring with an outlet pressure range of 6–14″ W.C.
- Sensus 243 series design — a proven platform in commercial gas pressure regulation
- Color-coded spring for quick field identification of pressure range
- Suitable for natural gas and LP gas distribution applications
Specifications
- SKU: 243-12-2
- Body Size: 2″ Standard
- Orifice Size: 3/4″
- Set Point: 30″ W.C.
- Spring Range: 6–14″ W.C.
- Spring Color Code: Green
- Series: Sensus 243
Application
Designed for use in commercial and light industrial gas piping systems where accurate downstream pressure regulation is critical. The Sensus 243-12-2 is ideal for installations requiring a 2-inch line regulator with a mid-range outlet pressure setting, including gas distribution mains, meter sets, and appliance supply lines.
