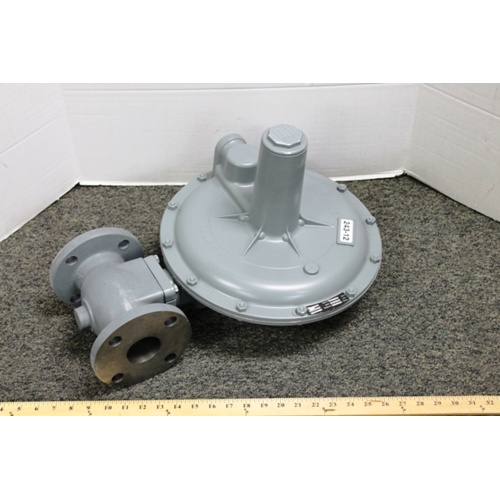

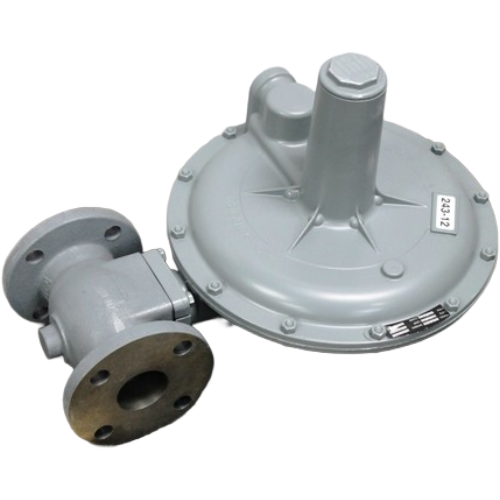

Sensus-Gas Division 243-12-IRV-2F Gas Regulator Overview
The Sensus-Gas Division 243-12-IRV-2F is a heavy-duty, flanged gas pressure regulator engineered for reliable downstream pressure control in commercial and industrial gas distribution systems. Featuring a 2″ flanged body connection and a 3/4″ orifice, this regulator is designed to handle demanding flow requirements while maintaining precise outlet pressure regulation. The green spring configuration provides a set-point range of 6–14″ water column (W.C.), making it well suited for a wide range of natural gas and LP gas applications.
Key Features
- 2″ flanged inlet/outlet connections for secure, leak-resistant piping integration
- 3/4″ orifice for optimized gas flow capacity
- Green spring range: 6–14″ W.C. outlet pressure setting
- Integral relief valve (IRV) design for added system protection
- Robust construction suitable for commercial and industrial gas service
- Designed for use with natural gas and LP gas systems
Specifications
- SKU: 243-12-IRV-2F
- Brand: Sensus-Gas Division
- Connection Type: 2″ Flanged
- Orifice Size: 3/4″
- Outlet Pressure Range: 6–14″ W.C.
- Spring Color: Green
- Valve Type: Integral Relief Valve (IRV)
Applications
- Commercial and industrial gas distribution systems
- Natural gas and LP gas pressure regulation
- Downstream pressure control at service entrances and meter sets
- Systems requiring integrated overpressure relief protection
