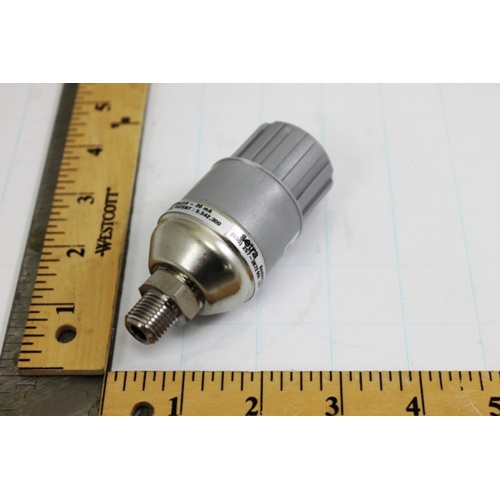

Setra 2091250PG2M11A1 Pressure Transducer Overview
The Setra 2091250PG2M11A1 is a high-performance gauge pressure transducer engineered for accurate, reliable pressure measurement in HVAC, building automation, and industrial process applications. With a 0 to 250 PSI gauge pressure range and a standard 4-20 mA analog output signal, this transducer integrates seamlessly into most control systems and data acquisition setups.
Key Features
- Pressure range: 0 to 250 PSI (gauge pressure type)
- Output signal: 4-20 mA for noise-resistant, long-distance signal transmission
- Pressure fitting: 1/4″ NPT male — compatible with standard HVAC and industrial piping
- Cable length: 2 feet for convenient direct wiring to nearby control panels or junction boxes
- Gauge pressure measurement for applications referencing atmospheric pressure
- Compact, rugged construction suitable for demanding field installations
Application Benefits
The 4-20 mA current loop output ensures reliable signal integrity over extended wiring runs, minimizing interference from electrical noise common in mechanical rooms and industrial environments. The 1/4″ NPT male fitting allows for quick, leak-free installation into standard pressure ports, while the 2-foot cable provides flexibility for local wiring connections.
Typical Applications
- HVAC chiller and boiler system pressure monitoring
- Building automation and BAS/BMS integration
- Compressed air and fluid pressure measurement
- Industrial process control and monitoring
- Pump and hydronic system pressure sensing
Why Choose Setra?
Setra Systems is a trusted name in precision sensing technology, delivering transducers and sensors built to perform in the most demanding environments. The Model 209 series is widely specified by mechanical engineers and HVAC professionals for its accuracy, durability, and ease of installation.
