Description

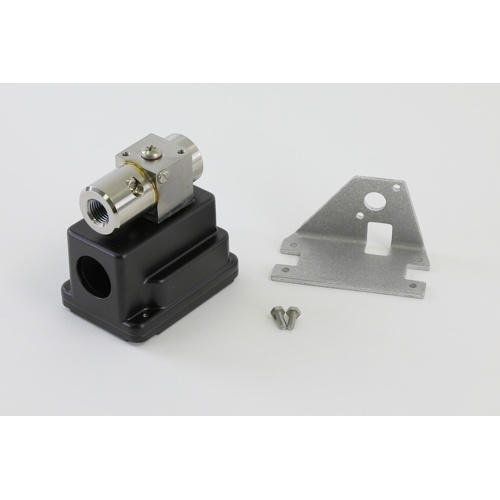

The Setra 2301050PD2F2EB is a high-accuracy, unidirectional differential pressure transducer from Setra’s trusted Series 230 lineup, engineered for demanding HVAC, building automation, and industrial pressure measurement applications. With a 0 to 50 PSID measurement range and a ratiometric 0.05–10.05 VDC output signal, this transducer delivers reliable, repeatable performance across a wide range of system conditions.
Key Features
- Pressure range: 0 to 50 PSID (unidirectional differential)
- Output signal: 0.05–10.05 VDC ratiometric
- Pressure fitting: 1/4″ NPT Female (F) connections
- Seals: Standard Viton bleed screw seals for chemical compatibility and long service life
- Compact, rugged housing suitable for panel mount or field installation
- High-stability variable capacitance sensing element for long-term accuracy
- Low hysteresis and excellent repeatability
Product Specifications
- SKU / Part Number: 2301050PD2F2EB (OEM: 2301-050PD-2F-2E-B)
- Brand: Setra Systems
- Measurement Type: Unidirectional Differential Pressure
- Pressure Range: 0 to 50 PSID
- Output: 0.05 to 10.05 VDC
- Pressure Port Fitting: 1/4″ NPT Female
- Seal Material: Viton (bleed screw seals)
- Series: 230
Applications
- HVAC system pressure monitoring and control
- Building automation and BAS/BMS integration
- Filter differential pressure measurement
- Pump and compressor pressure sensing
- Industrial process pressure monitoring
- Chiller and hydronic system diagnostics
Why Choose Setra Series 230?
Setra’s Series 230 pressure transducers are renowned for their precision variable capacitance sensing technology, offering superior long-term stability and minimal drift compared to piezoresistive alternatives. The Viton bleed screw seals provide excellent resistance to a broad range of fluids and gases, making this transducer a versatile choice for both HVAC and light industrial environments. The 0.05–10.05 VDC ratiometric output is compatible with most building automation controllers and data acquisition systems, simplifying integration into existing infrastructure.
