Description

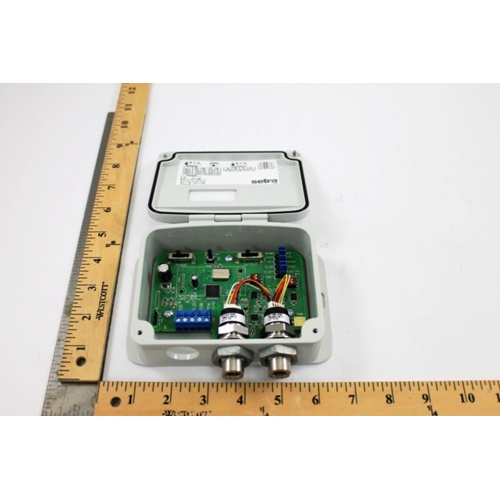

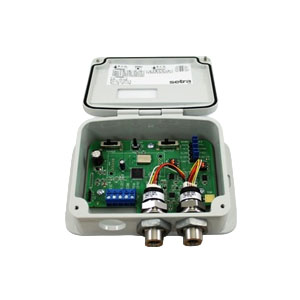

The Setra 231G-MS1-2F-N is a professional-grade, multi-configurable wet-to-wet differential pressure transducer engineered for demanding HVAC, building automation, and industrial applications. Designed to measure both unidirectional and bidirectional differential pressure across a wide range of selectable spans, this transducer delivers reliable, accurate readings in liquid-to-liquid pressure sensing environments.
Pressure Range Options
- Unidirectional: 5, 10, 25, and 50 PSID
- Bidirectional: ±5, ±10, ±25, and ±50 PSID
Key Features
- Multi-configurable design allows field selection of pressure range without replacing the unit
- Wet-to-wet differential pressure measurement — suitable for liquid media on both high and low pressure ports
- 1/8-18 NPT female pressure connections (standard) for easy integration into existing piping
- Conduit version housing for secure, code-compliant wiring in commercial and industrial installations
- No display (MS1) — clean, compact form factor ideal for panel or remote mounting where local readout is not required
- Rugged construction for long-term reliability in continuous-duty applications
Typical Applications
- Chilled water and hot water system differential pressure monitoring
- Filter and strainer pressure drop measurement
- Pump differential pressure sensing
- Building automation and energy management systems
- Flow measurement via differential pressure across an orifice or flow element
Product Specifications
- SKU: 231G-MS1-2F-N
- Brand: Setra
- Pressure Ranges (Unidirectional): 5, 10, 25, 50 PSID
- Pressure Ranges (Bidirectional): ±5, ±10, ±25, ±50 PSID
- Pressure Connection: 1/8-18 NPT female (standard)
- Enclosure: Conduit version
- Display: None
- Configuration: Multi-configurable, field-selectable range
- Measurement Type: Wet-to-Wet Differential
The Setra 231G series is a trusted choice among HVAC professionals and building automation engineers who require versatile, accurate differential pressure sensing with minimal installation complexity. The conduit-ready housing and NPT pressure ports make this transducer straightforward to install in both new construction and retrofit projects.
