Description

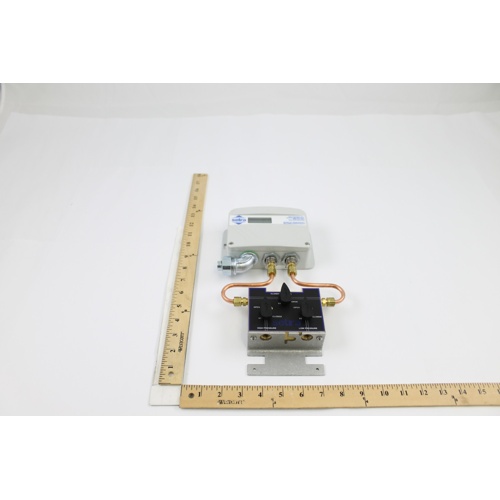

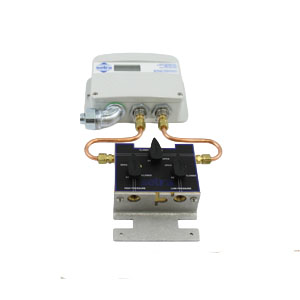

The Setra 231G-MS1-3V-D is a professional-grade, multi-configurable wet-to-wet differential pressure transducer engineered for demanding HVAC and building automation applications. Featuring a 3-V manifold assembly with a Model 231 pressure connection and an integrated LCD display, this transducer delivers accurate, reliable pressure measurement across a wide range of selectable ranges — making it an exceptionally versatile choice for system commissioning, monitoring, and control.
Pressure Range Options
- Unidirectional ranges: 5, 10, 25, and 50 PSID
- Bidirectional ranges: ±5, ±10, ±25, and ±50 PSID
Key Features
- Multi-configurable design — field-selectable pressure ranges for maximum installation flexibility
- Wet-to-wet differential pressure measurement — ideal for liquid-based HVAC systems, chilled water loops, and hydronic applications
- Integrated LCD display for easy on-site pressure readings without additional instrumentation
- 3-V manifold assembled with Model 231 pressure connection for streamlined installation and serviceability
- Unidirectional and bidirectional measurement capability in a single unit
- Compact, rugged construction suited for mechanical rooms and field installations
Typical Applications
- Chilled water and hot water differential pressure monitoring
- Filter and coil pressure drop measurement
- Pump differential pressure control
- Building automation and BAS integration
- Flow measurement across orifice plates and flow elements
Why Choose the Setra 231G-MS1-3V-D?
Setra is a trusted name in precision pressure sensing, and the Model 231G series continues that tradition with its multi-range configurability and field-ready design. The factory-assembled 3-V manifold simplifies installation while the onboard LCD eliminates the need for a separate readout device. Whether you are monitoring differential pressure across a coil, a pump, or a filter bank, the 231G-MS1-3V-D provides the accuracy and adaptability that HVAC professionals demand.
