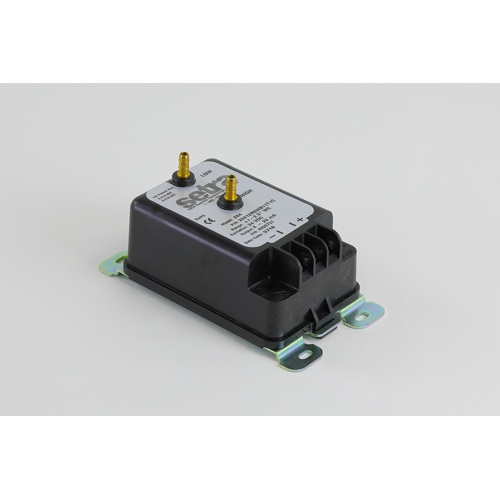

Setra 26412R5WB11T1C Low Differential Pressure Transducer Overview
The Setra 26412R5WB11T1C is a high-precision low differential pressure transducer engineered for demanding HVAC and building automation applications. Designed to measure bidirectional pressure across a ±2.5″ water column (WC) range, this transducer delivers reliable, accurate readings in both positive and negative pressure environments — making it ideal for duct static pressure monitoring, filter differential pressure measurement, clean room pressure control, and airflow management systems.
Key Features
- Bidirectional pressure range: ±2.5″ WC (inches of water column)
- Industry-standard 4 to 20 mA analog output for seamless BAS/BMS integration
- ±1% Full Scale (FS) accuracy for dependable, repeatable measurements
- Terminal strip wiring connection for straightforward field installation
- Low differential pressure design optimized for HVAC air-side applications
- Robust Setra construction for long-term stability and durability
Application Highlights
- Duct static pressure monitoring and control
- Air filter differential pressure measurement
- Clean room and laboratory pressurization control
- VAV system airflow sensing and balancing
- Building automation and energy management systems
Why Choose the Setra 26412R5WB11T1C?
Setra is a trusted name in precision pressure sensing. The Model 264 series is purpose-built for low differential pressure measurement in HVAC environments, offering the accuracy and signal reliability that contractors, engineers, and building automation professionals require. The 4–20 mA output is universally compatible with virtually all building automation systems and DDC controllers, while the terminal strip connection simplifies field wiring. With ±1% FS accuracy, this transducer ensures your pressure control loops and monitoring systems perform with confidence.
Product Specifications
- SKU: 26412R5WB11T1C
- Brand: Setra
- Pressure Range: ±2.5″ WC (Bidirectional)
- Output Signal: 4 to 20 mA
- Accuracy: ±1% Full Scale (FS)
- Connection Type: Terminal Strip
- Measurement Type: Low Differential Pressure
