Description

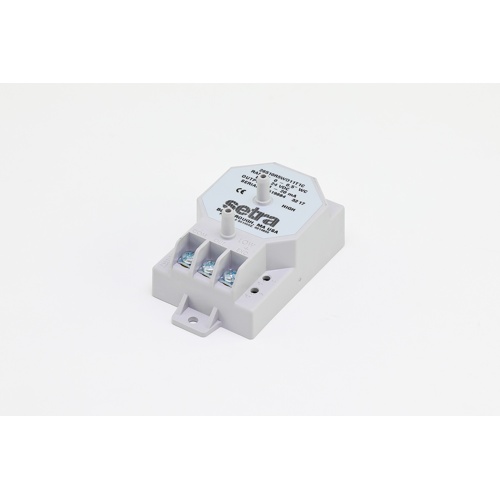

The Setra 26510R5WD11T1C is a precision low differential pressure transducer engineered for demanding HVAC and building automation applications where accurate, stable pressure measurement is critical. Designed for unidirectional sensing across a 0 to 0.5″ water column range, this transducer delivers reliable, repeatable performance in air handling, cleanroom monitoring, filter status detection, and duct pressure management systems.
Powered by 24 VDC and featuring an industry-standard 4 to 20 mA analog output, the 26510R5WD11T1C integrates seamlessly with building automation systems, DDC controllers, and data acquisition equipment. The terminal strip wiring connection simplifies field installation and ensures a secure, professional-grade electrical interface. With ±1% full-scale accuracy, this transducer provides the measurement confidence required for energy management and critical environment control.
Key Features
- Pressure Range: 0 to 0.5″ WC (unidirectional)
- Power Supply: 24 VDC
- Output Signal: 4 to 20 mA analog
- Accuracy: ±1% Full Scale (FS)
- Wiring Connection: Terminal strip
- Sensing Type: Low differential pressure, unidirectional
Applications
- HVAC duct static pressure monitoring
- Air filter differential pressure measurement
- Cleanroom and laboratory pressure control
- Building automation and DDC system integration
- Fan and blower performance verification
- Variable air volume (VAV) system control
Why Choose the Setra 26510R5WD11T1C?
Setra is a trusted name in precision pressure sensing, and the 26510R5WD11T1C upholds that reputation with a robust design optimized for low-range differential pressure measurement. The 4–20 mA output is immune to signal degradation over long wire runs, making it ideal for large commercial and industrial installations. The terminal strip connection reduces installation time and supports easy field wiring without proprietary connectors. Whether you’re commissioning a new air handling system or retrofitting an existing BAS, this transducer delivers the accuracy and reliability your application demands.
