Description

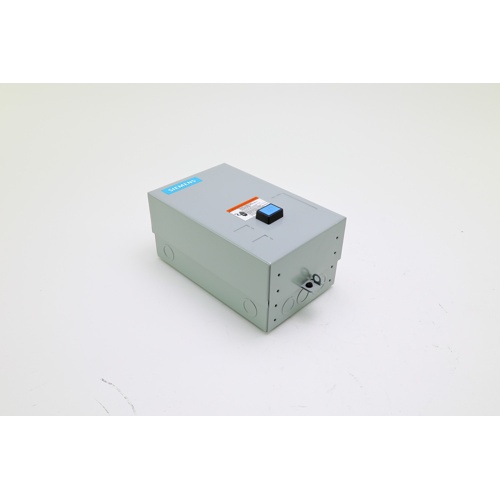

Siemens 14BUC32BA Heavy Duty Motor Starter Overview
The Siemens 14BUC32BA is a heavy duty motor starter engineered for dependable three-phase motor control in commercial and industrial HVAC applications. Built to NEMA standards, this starter combines a robust contactor with an integrated solid state overload relay in a NEMA 1 general purpose enclosure, delivering reliable protection and long service life.
Key Features
- NEMA Size 00 motor starter with Frame Size A1 construction
- Three-phase, 3-pole configuration for balanced motor protection
- Coil voltage: 110–120V AC / 220–240V AC for broad compatibility
- Solid state overload relay with 3–12 Amp adjustable overload rating
- Auto/Manual reset options for flexible overload recovery
- NEMA 1 general purpose type enclosure for indoor installations
- Heavy duty design built to withstand demanding motor starting cycles
Electrical Specifications
- Coil Voltage: 110–120V AC / 220–240V AC
- Phases: Three Phase
- Poles: 3
- Overload Range: 3–12 Amps
- NEMA Size: 00
- Frame Size: A1
- Enclosure Type: NEMA 1 General Purpose
- Overload Type: Solid State
- Reset Type: Auto / Manual
Application
Ideal for controlling and protecting three-phase motors in HVAC systems, pumps, fans, compressors, and other light industrial equipment. The solid state overload relay provides precise, repeatable trip characteristics without the drift associated with bimetallic overloads, making it well-suited for environments where consistent motor protection is critical.
Why Choose Siemens 14BUC32BA
- Trusted Siemens quality and engineering for long-term reliability
- Solid state overload eliminates thermal drift for accurate motor protection
- Dual coil voltage rating simplifies installation across common supply voltages
- NEMA 1 enclosure provides protection against dust and incidental contact
- Auto/Manual reset flexibility supports a wide range of operational requirements
