Siemens 14CUD32AA Heavy Duty Motor Starter, NEMA Size 0, Three Phase, 110-240V

Name: Siemens 14CUD32AA Heavy Duty Motor Starter, NEMA Size 0, Three Phase, 110-240V
Brand: Siemens
SKU: 14CUD32AA
Price: 454.54 USD
Availability: OutOfStock

BRAND: Siemens SKU: 14CUD32AA

$454.54

MSRP: $522.72

You save 15%

Heavy Duty Motor Starter, NEMA Size 0, 3-Phase, 5.5–22A Overload

This is out of stock, for now. Leave your email and we’ll notify you when it’s back.

Availability:

Out of Stock

Description

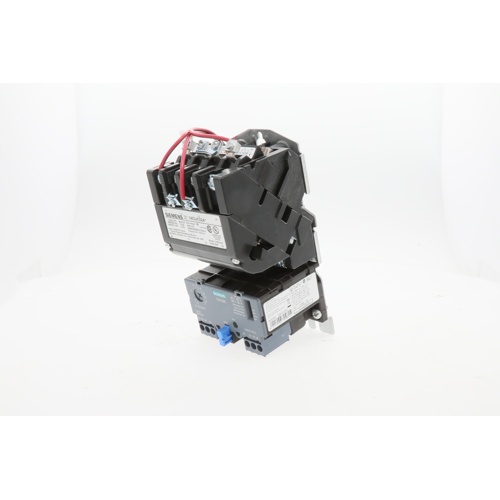

Siemens 14CUD32AA Heavy Duty Motor Starter Overview

The Siemens 14CUD32AA is a heavy duty motor starter engineered for reliable three-phase motor control in demanding commercial and industrial HVAC and mechanical applications. Built to NEMA Size 0 standards with a Frame Size A1 designation, this starter delivers consistent performance and robust overload protection in a compact open-type enclosure.

Key Features

Coil Voltage: 110–120V / 220–240V AC — dual-voltage flexibility for a wide range of electrical systems
Three Phase, 3-Pole configuration for full motor branch circuit control
Overload Rating: 5.5–22 Amps — suitable for NEMA Size 0 motor loads
NEMA Size 0 rating for standard fractional to small integral horsepower motors
Frame Size A1 for easy panel and enclosure integration
Open Type Enclosure — designed for installation inside a control panel or enclosure
Solid State Overload Relay with Auto/Manual Reset — provides precise, electronic overload protection with flexible reset options
Heavy Duty construction for long service life in continuous-duty motor applications

Solid State Overload Protection

The integrated solid state overload relay offers superior accuracy over traditional bimetallic overloads. It continuously monitors motor current and trips to protect against overheating and overload conditions. The Auto/Manual Reset feature allows the operator to choose automatic restart after a fault clears or require a manual reset for added safety.
