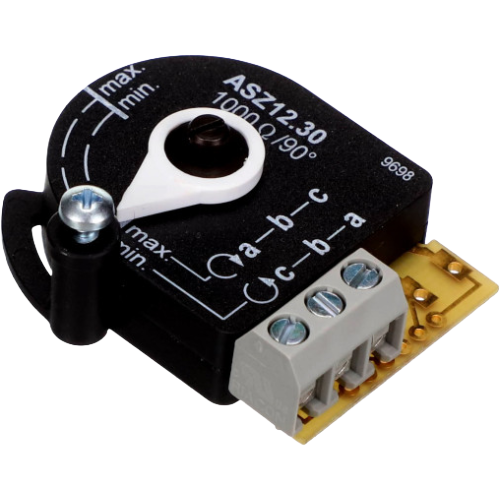

Siemens Combustion ASZ12.30 1000 Ohm 3-Pole 90-Degree Potentiometer

Description

Siemens Combustion ASZ12.30 Potentiometer Overview

The Siemens Combustion ASZ12.30 is a precision 1000-ohm, 3-pole, 90-degree rotary potentiometer engineered for use in combustion control and actuator feedback applications. Designed to deliver accurate position sensing across a 90-degree rotation arc, this potentiometer integrates seamlessly into Siemens combustion management systems and compatible actuator assemblies, ensuring reliable and repeatable feedback signals for optimal burner and process control.

Key Features

• 1000 ohm resistance rating for precise signal output
• 3-pole configuration for versatile wiring and circuit integration
• 90-degree rotational travel for accurate position feedback
• Designed for combustion control and actuator feedback applications
• Engineered to Siemens quality and reliability standards
• Direct replacement or upgrade component for compatible Siemens combustion systems

Application

The ASZ12.30 potentiometer is ideal for use as a feedback element in combustion actuators, damper drives, and burner management systems where precise position reporting is critical. Its 90-degree travel and 3-pole design make it well-suited for integration into control loops requiring accurate, low-noise resistance feedback.

Specifications

• SKU: ASZ12.30
• Brand: Siemens Combustion
• Resistance: 1000 ohm
• Poles: 3-Pole
• Rotation: 90 Degrees
• Type: Rotary Potentiometer
