Description

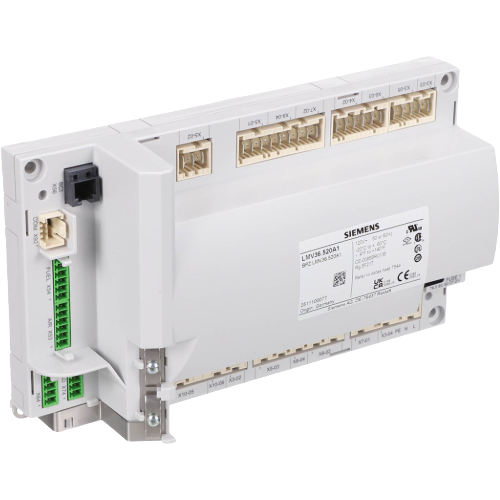

The Siemens LMV36.520A1 is a sophisticated dual fuel burner management controller designed for commercial and industrial combustion applications. Operating at 120V, this advanced burner control system delivers precise, reliable management of both gas and oil-fired burners, making it an ideal solution for facilities requiring fuel flexibility and high-performance combustion control.
The LMV36 series from Siemens Combustion represents a fully integrated burner management system that combines burner sequencing, air/fuel ratio control, and flame supervision into a single compact unit. It is engineered to optimize combustion efficiency, reduce fuel consumption, and ensure safe burner operation across a wide range of load conditions.
Key Features
- Dual fuel capability — supports both gas and oil-fired burner applications
- 120V operating voltage for compatibility with standard North American electrical systems
- Integrated burner management and combustion control in one unit
- Advanced flame supervision with self-monitoring safety functions
- Fully automatic burner sequencing for startup, operation, and shutdown
- Modulating control for precise air/fuel ratio management
- Compact, panel-mount design for easy installation
- Diagnostic and fault indication for simplified troubleshooting
- Compatible with Siemens AZL display and operating unit for local interface
Application
The LMV36.520A1 is suited for commercial and light industrial boilers, process heaters, and other dual fuel combustion systems where reliable burner management and fuel efficiency are critical. It is part of the Siemens LMV36 product family, which is widely used by OEM burner manufacturers and HVAC/combustion contractors.
Product Specifications
- Brand: Siemens
- Model / SKU: LMV36.520A1
- Supply Voltage: 120V
- Fuel Type: Dual Fuel (Gas and Oil)
- Product Type: Burner Management Controller
- Series: LMV36
