Description

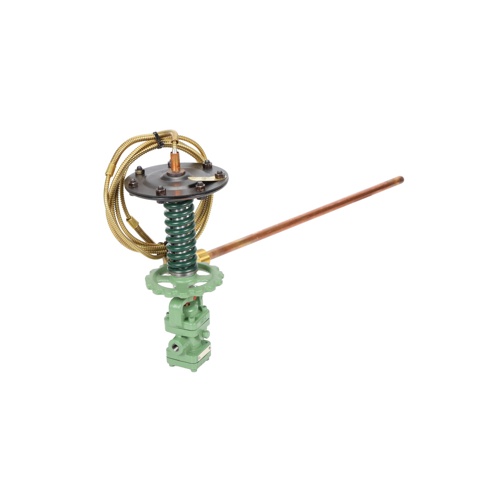

The Spence Engineering P-T14-C1S1CA11 is a precision T14 Series Temperature Pilot designed for demanding steam service applications. Built with a durable cast iron body and bronze thermostat material, this pilot delivers reliable temperature-actuated control across a wide operating range of 70°F to 170°F. The 700-style sensing bulb and 10-foot capillary assembly provide flexible remote sensing capability, making it well suited for installation in tight or remote locations.
Key Features
- Temperature range: 70°F to 170°F
- Service type: Steam
- Body material: Cast iron for long-lasting durability in high-demand environments
- Thermostat material: Bronze for corrosion resistance
- Trim: 1/4″ metal trim for secure, leak-resistant connections
- Sensing element: 700-style bulb for accurate, responsive temperature detection
- Capillary length: 10 feet for flexible remote sensing installation
- Series: T14 Temperature Pilot
Application
The Spence Engineering T14 Temperature Pilot is engineered for use in steam system temperature control, working in conjunction with self-contained temperature regulators to modulate flow based on sensed temperature. The 10-foot capillary and 700-style bulb allow the sensing element to be positioned precisely at the point of measurement, while the pilot itself can be mounted at a convenient location. This configuration is ideal for process heating, HVAC steam systems, and industrial temperature regulation where accurate, reliable pilot-operated control is required.
Specifications
- SKU: P-T14-C1S1CA11
- Brand: Spence Engineering
- Temperature Range: 70°F – 170°F
- Body Material: Cast Iron
- Thermostat Material: Bronze
- Trim Size: 1/4″ Metal
- Service: Steam
- Bulb Style: 700 Series
- Capillary Length: 10 Feet
- Series: T14 Temperature Pilot
