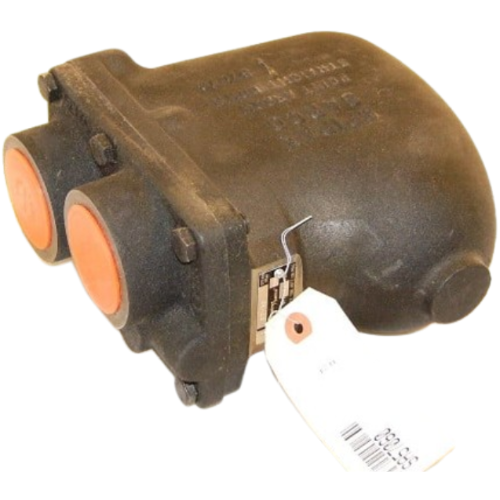

Spirax-Sarco FT-30 Float & Thermostatic Steam Trap — 1-1/2″ | 30 PSI
The Spirax-Sarco FT-30 is a high-quality float & thermostatic (F&T) steam trap engineered for continuous, automatic discharge of condensate and air from steam systems. With a 1-1/2″ connection size and a 30 PSI pressure rating, this trap is well-suited for a wide range of commercial and industrial steam heating applications where reliable condensate management is critical to system efficiency and equipment longevity.
How It Works
The FT-30 combines two proven mechanisms in a single trap body. The float valve responds continuously to condensate levels, opening to discharge condensate as it accumulates and closing when steam is present — ensuring no live steam is lost. The integral thermostatic air vent automatically purges non-condensable gases (air) at startup and during operation, improving heat transfer efficiency and preventing air-binding in the system.
Key Features
- Float & thermostatic (F&T) steam trap design for continuous condensate discharge
- 1-1/2″ pipe connection size for compatibility with larger steam distribution lines
- 30 PSI (30#) maximum allowable pressure rating
- Integral thermostatic air vent for automatic purging of non-condensable gases
- Robust construction designed for long service life in demanding steam systems
- Spirax-Sarco quality engineering — a globally trusted name in steam system solutions
Typical Applications
- Commercial and industrial steam heating systems
- Unit heaters, heat exchangers, and process equipment
- Steam distribution mains and branch lines
- Drip legs and tracer lines
Why Choose Spirax-Sarco
Spiax-Sarco is a world leader in steam system engineering, offering products that maximize energy efficiency, minimize downtime, and reduce total cost of ownership. The FT-30 series is a trusted solution for facilities managers and HVAC/mechanical contractors who demand dependable condensate removal performance.
