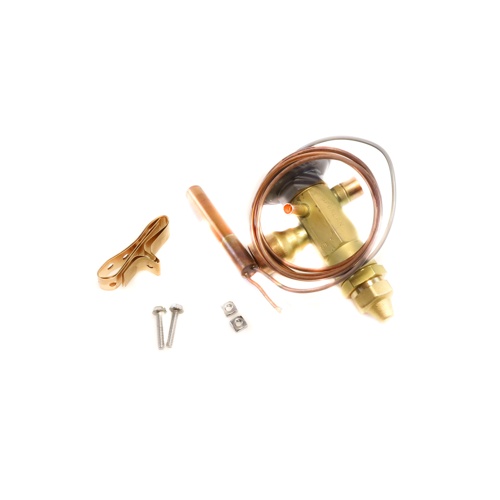

Sporlan Controls 130734 1/2×7/8 R-22 5-Ton TXV with 5′ Capillary

Description

The Sporlan Controls 130734 is a thermostatic expansion valve (TXV) engineered for reliable, precise refrigerant metering in R-22 residential and light commercial cooling systems rated at 5 tons. Sporlan’s TXVs are trusted throughout the HVAC/R industry for their consistent superheat control, durable construction, and long service life — making this valve an ideal choice for new installations and direct replacement applications alike.

Key Features

• Designed for R-22 refrigerant systems
• 5-ton capacity rating for residential and light commercial applications
• 1/2″ inlet (liquid line) x 7/8″ outlet (suction/evaporator) connection sizes
• 5-foot capillary tube for flexible remote bulb placement
• Precise superheat control for optimized system efficiency and compressor protection
• Durable construction built to Sporlan’s industry-leading quality standards
• Direct replacement for compatible OEM and aftermarket TXV applications

Application

This TXV is suited for split-system air conditioners, heat pumps, and refrigeration systems using R-22 refrigerant. The 5-foot capillary tube allows the sensing bulb to be positioned accurately on the suction line for optimal superheat sensing, ensuring the evaporator operates at peak performance while protecting the compressor from liquid slugging.

Product Specifications

• SKU: 130734
• Brand: Sporlan Controls (Parker-Sporlan)
• Refrigerant: R-22
• Capacity: 5 Tons
• Inlet Connection: 1/2″
• Outlet Connection: 7/8″
• Capillary Length: 5 Feet
• Valve Type: Thermostatic Expansion Valve (TXV)
