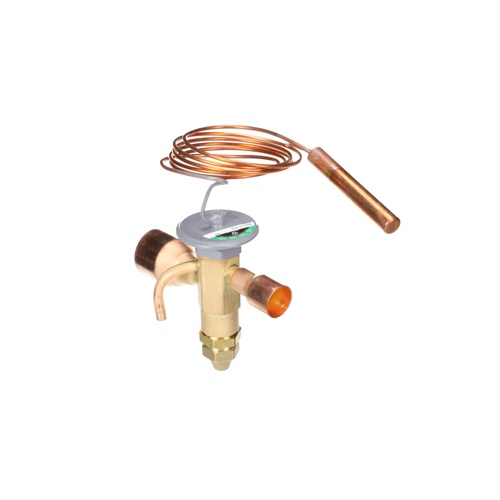

Sporlan Controls 163564 7/8″x1-3/8″ ODF 5′ Cap TXV

Description

Sporlan Controls 163564 Thermostatic Expansion Valve

The Sporlan Controls 163564 is a thermostatic expansion valve (TXV) engineered to deliver precise refrigerant metering and superior system efficiency in commercial and residential refrigeration and air conditioning applications. Sporlan, a trusted name in refrigeration controls, designs this TXV to maintain optimal evaporator superheat across a wide range of operating conditions, protecting the compressor and maximizing system performance.

Key Features

• Thermostatic expansion valve (TXV) for accurate refrigerant flow control
• 7/8″ inlet x 1-3/8″ ODF outlet connections for straightforward field installation
• 5-foot capillary tube for flexible remote bulb placement
• Maintains consistent evaporator superheat to protect compressor integrity
• Engineered for reliable performance in demanding HVAC/R environments
• Manufactured by Sporlan Controls, a Parker Hannifin company

Product Specifications

• SKU: 163564
• Brand: Sporlan Controls
• Inlet Connection: 7/8″ ODF
• Outlet Connection: 1-3/8″ ODF
• Capillary Tube Length: 5 feet
• Valve Type: Thermostatic Expansion Valve (TXV)

Application

The Sporlan 163564 TXV is ideal for use in split systems, commercial refrigeration equipment, and other HVAC/R installations requiring dependable refrigerant metering. The 5-foot capillary tube allows the remote sensing bulb to be positioned accurately on the suction line for optimal superheat sensing, while the ODF connections ensure compatibility with standard copper tubing.
