Sporlan Controls 168772 1/2″x7/8″ ODF R22 8-Ton TXV Thermostatic Expansion Valve

Description

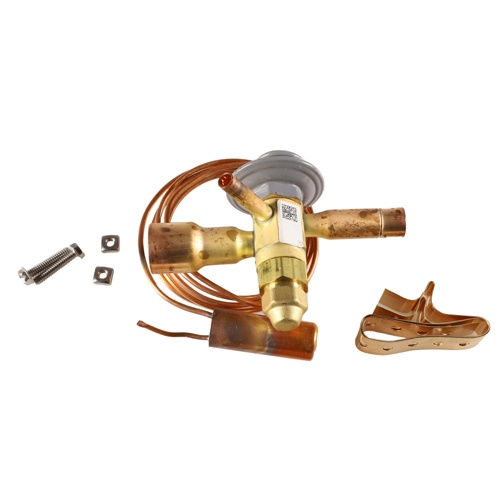

Sporlan Controls 168772 Thermostatic Expansion Valve Overview

The Sporlan Controls 168772 is a heavy-duty Thermostatic Expansion Valve (TXV) engineered for reliable refrigerant metering in commercial and light-industrial R-22 cooling systems. Rated for 8-ton capacity, this valve delivers consistent superheat control to protect compressors and maximize system efficiency across a wide range of operating conditions.

Key Features

• Designed for R-22 refrigerant systems
• 8-ton nominal capacity for commercial-grade applications
• 1/2″ ODF inlet connection for liquid line hookup
• 7/8″ ODF outlet connection for evaporator coil connection
• Thermostatic expansion valve design provides precise superheat regulation
• Engineered to maintain stable refrigerant flow under varying load conditions
• Durable construction for long service life in demanding HVAC/R environments
• Manufactured by Sporlan Controls, a trusted name in refrigeration flow control

Application

The Sporlan 168772 TXV is ideal for use in commercial air conditioning, refrigeration, and process cooling systems utilizing R-22 refrigerant. It is suited for rooftop units, split systems, and chiller applications requiring dependable 8-ton capacity expansion control.

Specifications

• SKU: 168772
• Brand: Sporlan Controls
• Refrigerant: R-22
• Capacity: 8 Ton
• Inlet Connection: 1/2″ ODF
• Outlet Connection: 7/8″ ODF
• Valve Type: Thermostatic Expansion Valve (TXV)
